Tefficiency Vertical Conveyors Customized Bucket Elevator for Animal Feed /Food Industry
Tefficiency Vertical Conveyors Customized Bucket Elevator for Animal Feed /Food Industry
Couldn't load pickup availability

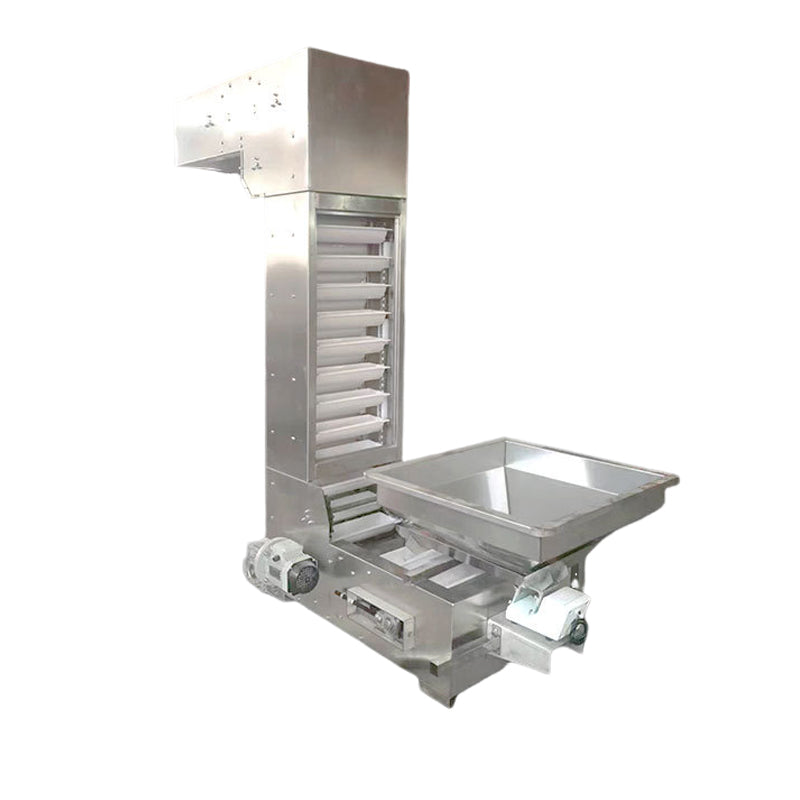

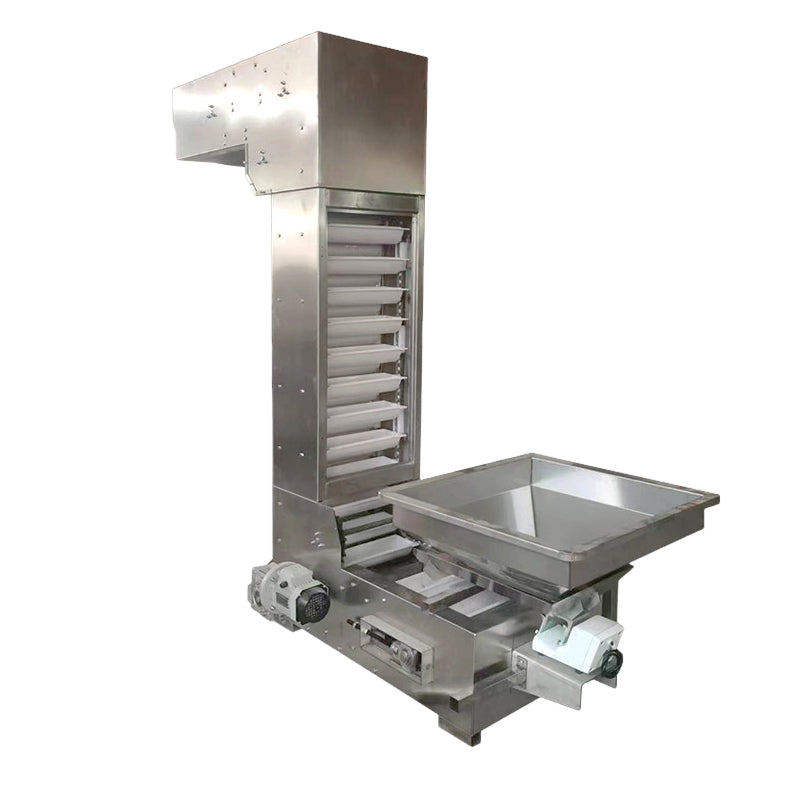

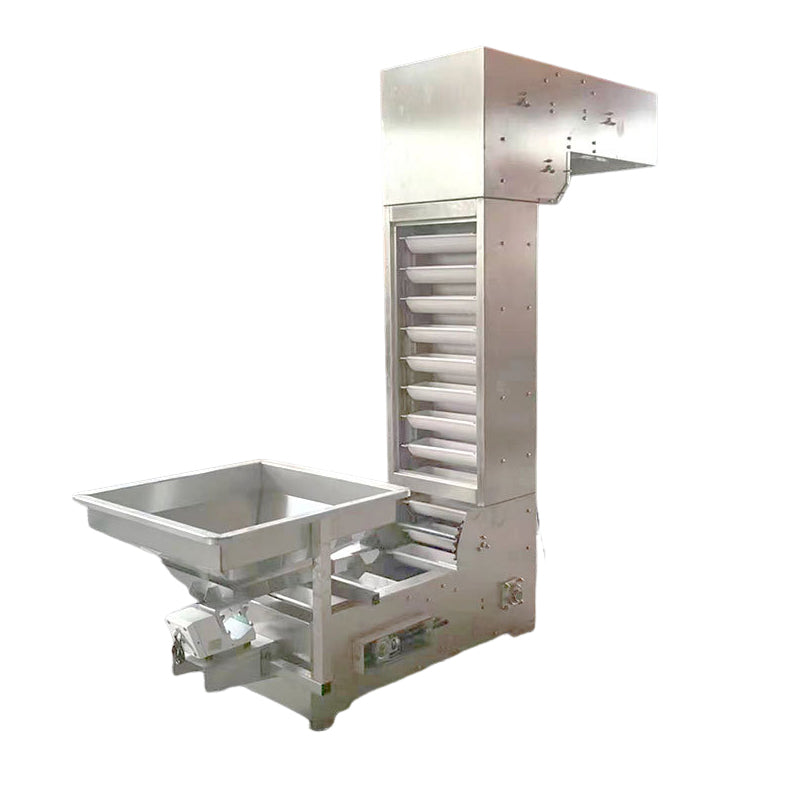

Core Abstract: The TD01 Z-Type Bucket Elevator is a high-efficiency automated vertical conveying system engineered for fragile and granular materials across industries such as food, pharmaceutical, chemical, and hardware. Utilizing a continuous bucket conveyor system, it achieves damage-free, quantitative, and automated high-level transport.
For technical architecture, schematics, and detailed documentation, please visit our official Z-Type Bucket Elevator Documentation Hub.
🌟 Core Advantages

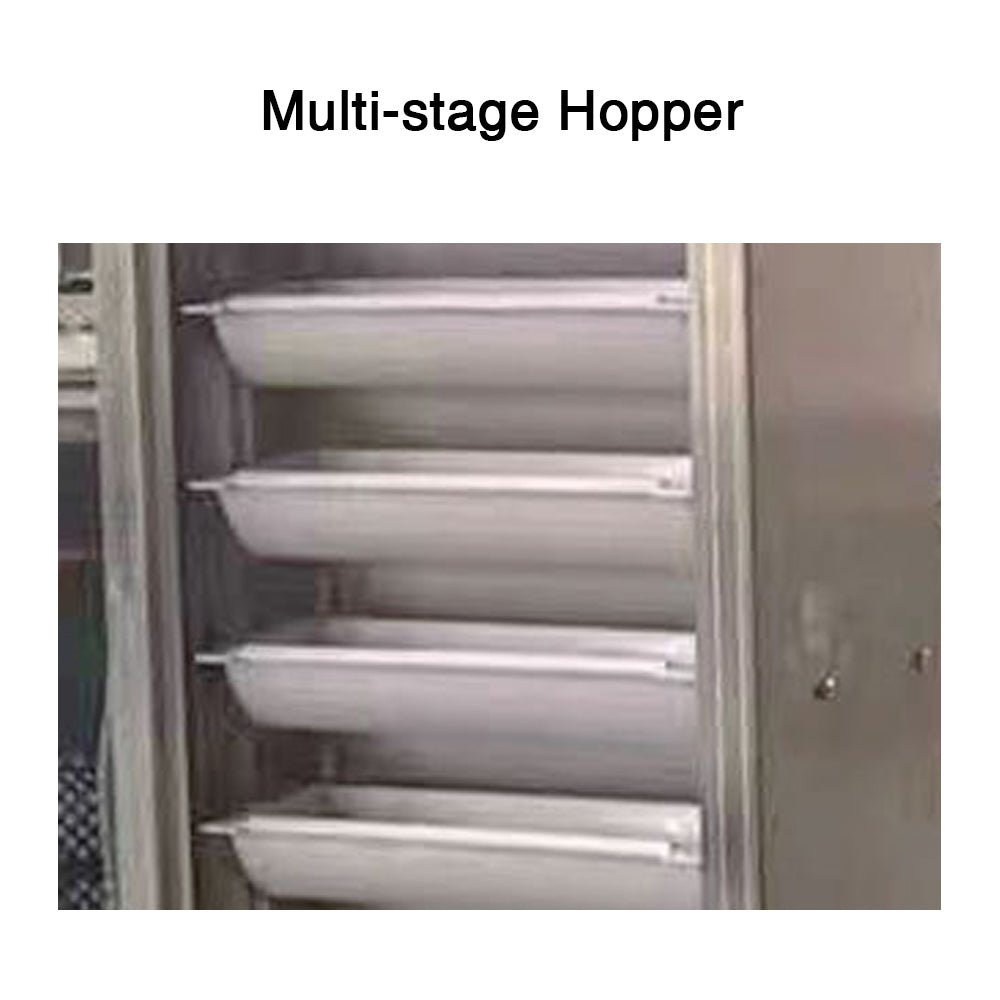

- Damage-Free Transport: Materials are carried in independent buckets, eliminating friction and compression—perfect for fragile products (e.g., nuts, puffed snacks, capsules).
- Continuous & Stable Feeding: Compatible with optional vibratory feeder hoppers to ensure quantitative, uniform, and automated supply, preventing material buildup.
- High-Grade Materials: Buckets are constructed from food-grade PP, ABS, or SUS304/316 stainless steel for durability and wear resistance.
- Easy Cleaning: Modular quick-release design allows for tool-free disassembly, meeting strict hygiene standards.
- Anti-Spill Mechanism: Gravity-balanced pivots ensure that the buckets remain upright throughout the entire conveying cycle.
⚙️ Operation Process
- Material Loading: Feed granular or fragile materials into the receiving hopper at ground level.
- Parameter Setting: Adjust the conveying speed and sync with the packaging or mixing production line via the control interface.
- Start Operation: Power on the system to drive the chain and bucket rotation smoothly.
- Vertical & Horizontal Transfer: Buckets lift materials vertically and transit horizontally without spilling, secured by gravity-balanced pivots.

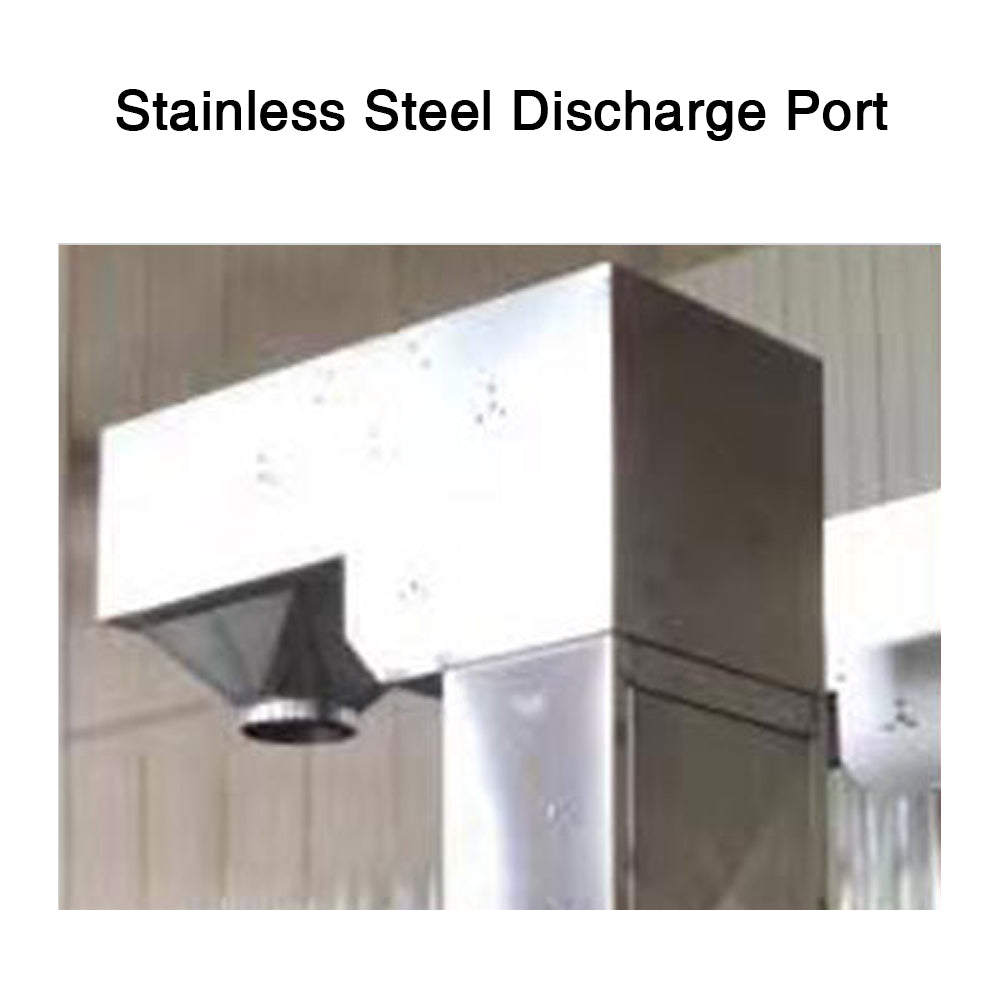

- Automatic Discharge: Materials are accurately dumped into the target machine's intake hopper at the designated high-level outlet.
- Cycle Reset: Empty buckets return in an inverted or upright closed loop to reload at the base.
📊 Technical Specifications
| Parameter (Items) | Metric Units | Imperial Units |
|---|---|---|
| Model | TD01 | TD01 |
| Rated Power | 0.75 Kw | 1.0 HP |
| Lifting Height | 2000 mm | 78″ |
| Machine Weight | 180 kg | 397 lbs |
| Dimensions | 2100 × 850 × 2450 mm | 83″ × 33.5″ × 96.5″ |
Note: Height, material, and bucket capacity can be fully customized. Explore full technical notes on our Technical Documentation Hub.
❓ Frequently Asked Questions (FAQ)
Q: Is the Z-type bucket elevator suitable for powders?
A: This elevator is primarily designed for granular materials. For fine powders, we recommend our screw conveyor or vacuum loader to prevent dust dispersion.
Q: Are the buckets easy to clean?
A: Yes. The modular quick-release design allows you to disassemble the buckets individually for thorough cleaning, ensuring no hygiene dead zones.
Q: Can the lifting height be adjusted?
A: Yes. We offer fully customized solutions for height, width, and bucket capacity to fit your production line layout and output requirements.
Q: Is the equipment noisy during operation?
A: The machine features a silent reduction motor and wear-resistant guide rails, ensuring smooth operation with a noise level significantly lower than standard steel elevators.
📦 Commercial & International Trade Terms
- International Price Terms: DDP (Delivered Duty Paid) to Door.
- Payment Terms: 100% T/T (Telegraphic Transfer) in advance.
- Lead Time: 15–20 calendar days.
- Packaging: Standard Export Plywood Case.
- Warranty: 12 months (excluding shipping costs).
Need custom dimensions or assembly diagrams? Visit our Z-Type Bucket Elevator Documentation Hub.
