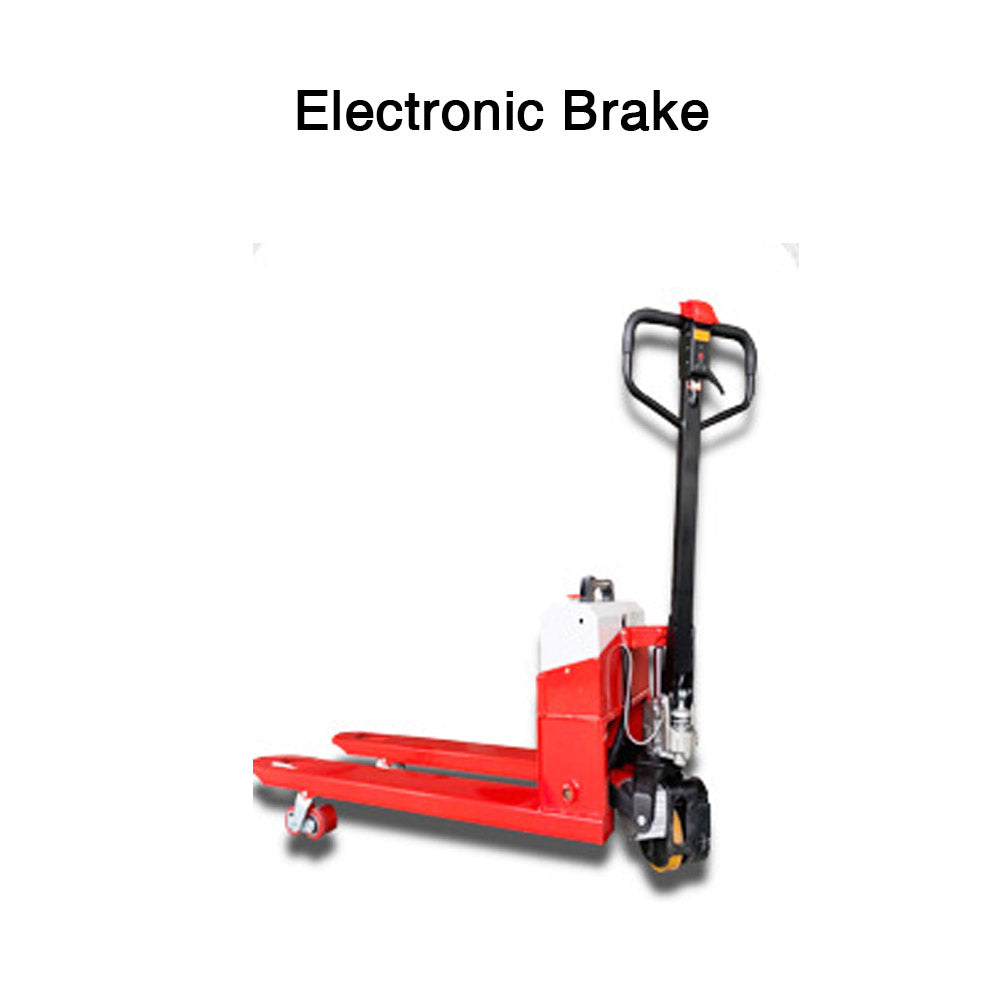

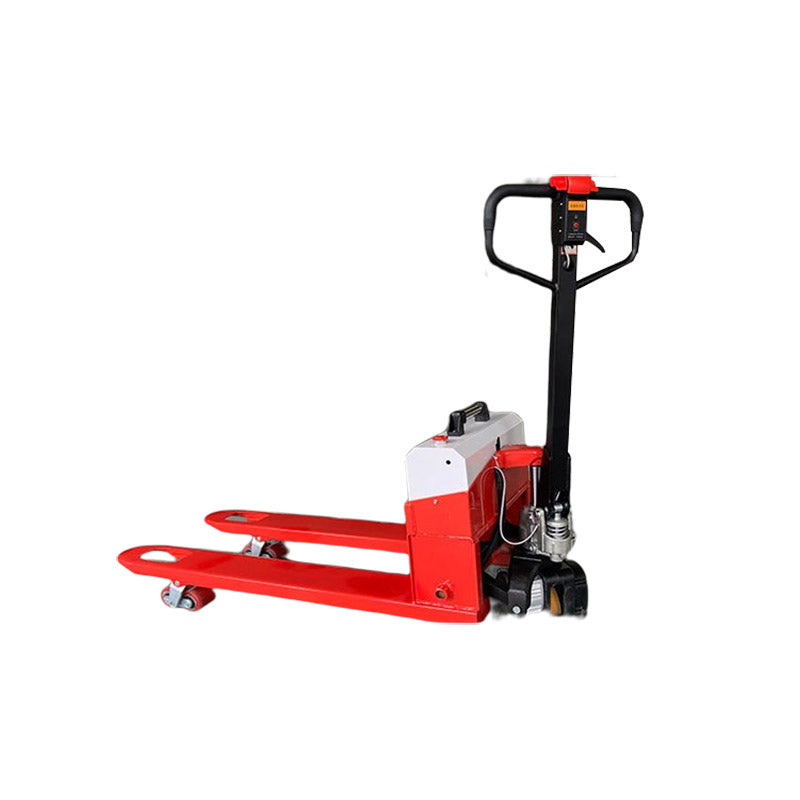

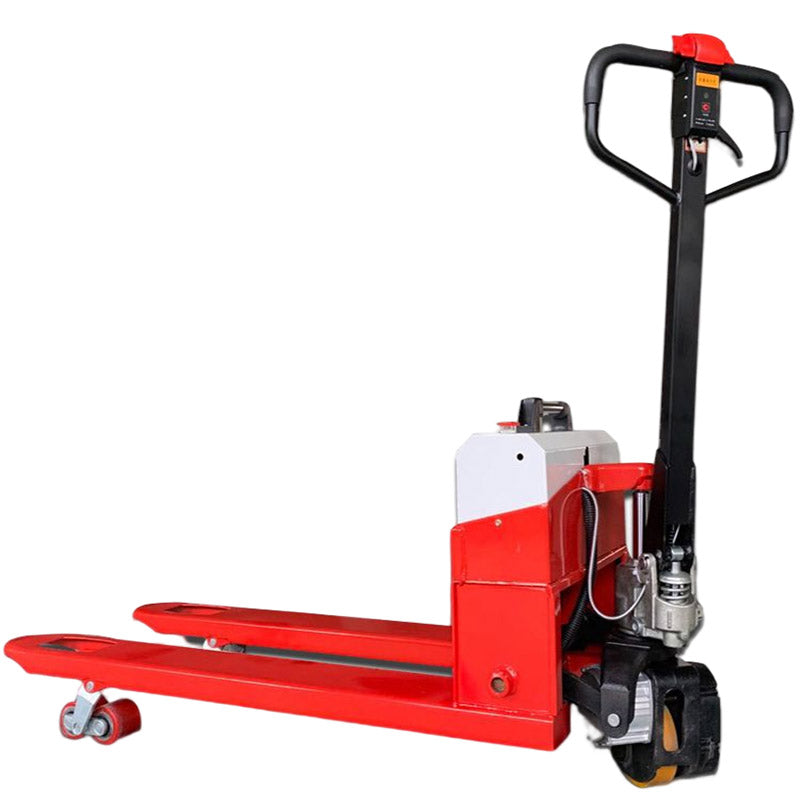

Semi-Electric Pallet Trucks
Semi-Electric Pallet Trucks

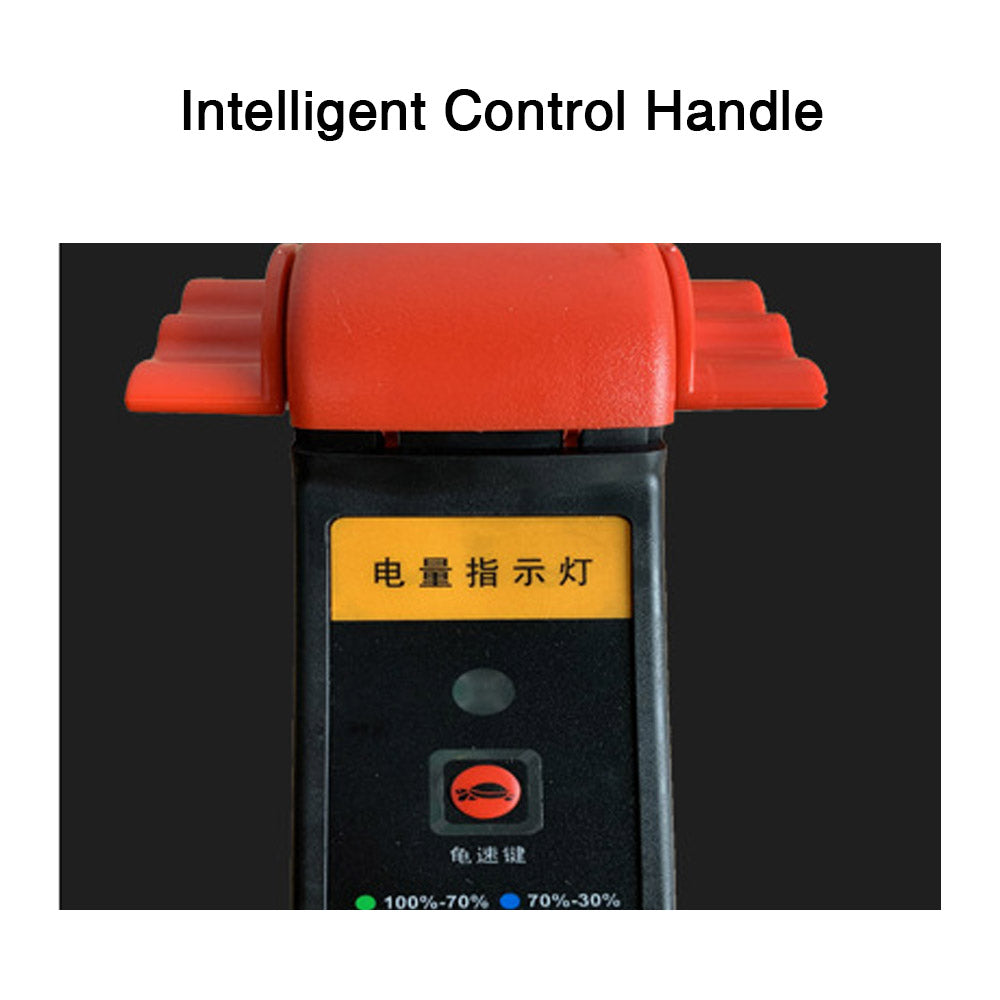

1.The discharge display meter is more firm and reliable, and the discharge protection function of the meter ensures the service life of the battery
2. Effectuve protection of personnel against foor pressure,safe opera

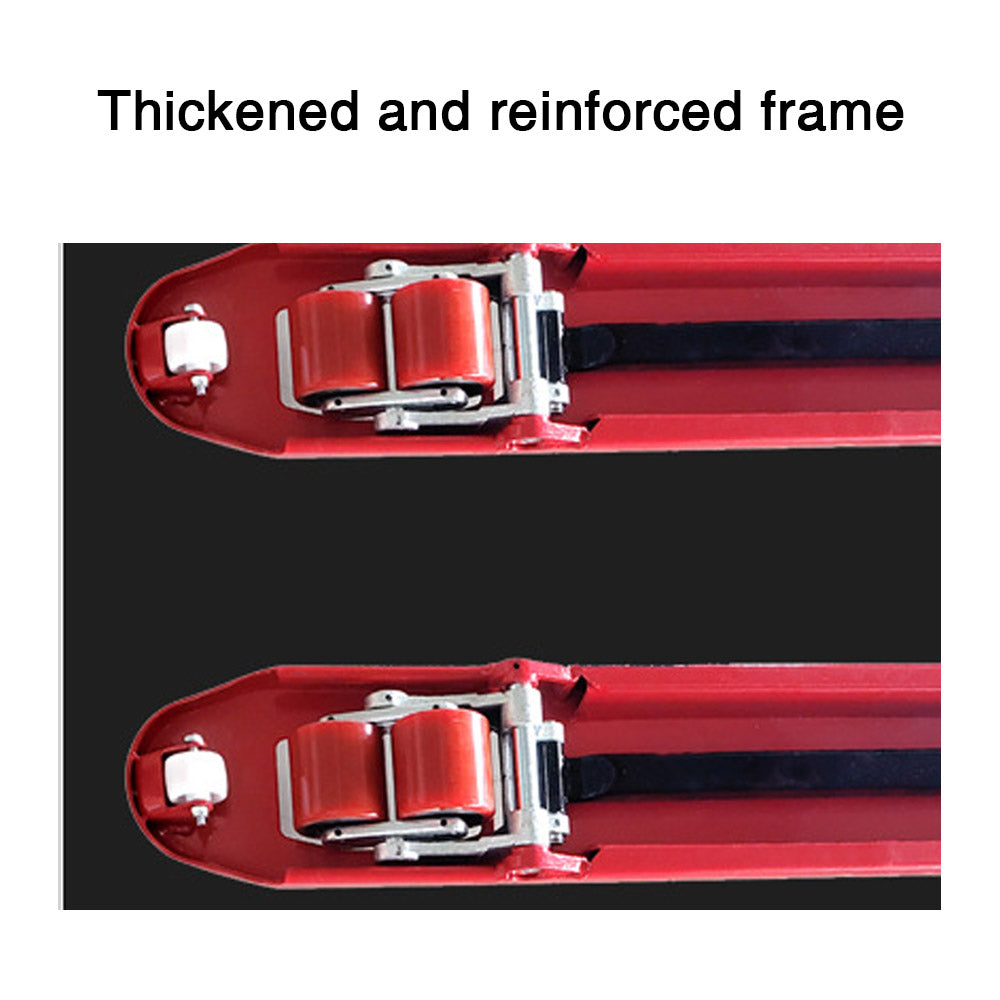

3. It is stronger and more durable than traditional flat fork leg and has better bearing capacity
|
Model |
TDS-20 |
TDS-30 |
|
|
Rated weight |
kg |
2000 |
3000 |
|
Lifting height |
mm |
200 |
200 |
|
Load center distance |
mm |
600 |
600 |
|
Fork Length |
mm |
1150 |
1200 |
|
Min ground clearance |
mm |
85 |
|
|
The size of wheel |
|
∅250*80 |
∅250*90 |
|
Full load speed |
Km/h |
4.5 |
4.5 |
|
Full load lifting speed |
mm/min |
5.5 |
5.5 |
|
Min outside turning radius |
mm |
1200 |
1200 |
|
Overall Dimensions |
mm |
1800*680(550)*1150 |
1800*680(550)*1200 |
|
Weight |
kg |
350 |
360 |
