Powder Spiral Inclined Screw Conveyor Auger Feeder Elevator Hopper
Powder Spiral Inclined Screw Conveyor Auger Feeder Elevator Hopper
Couldn't load pickup availability

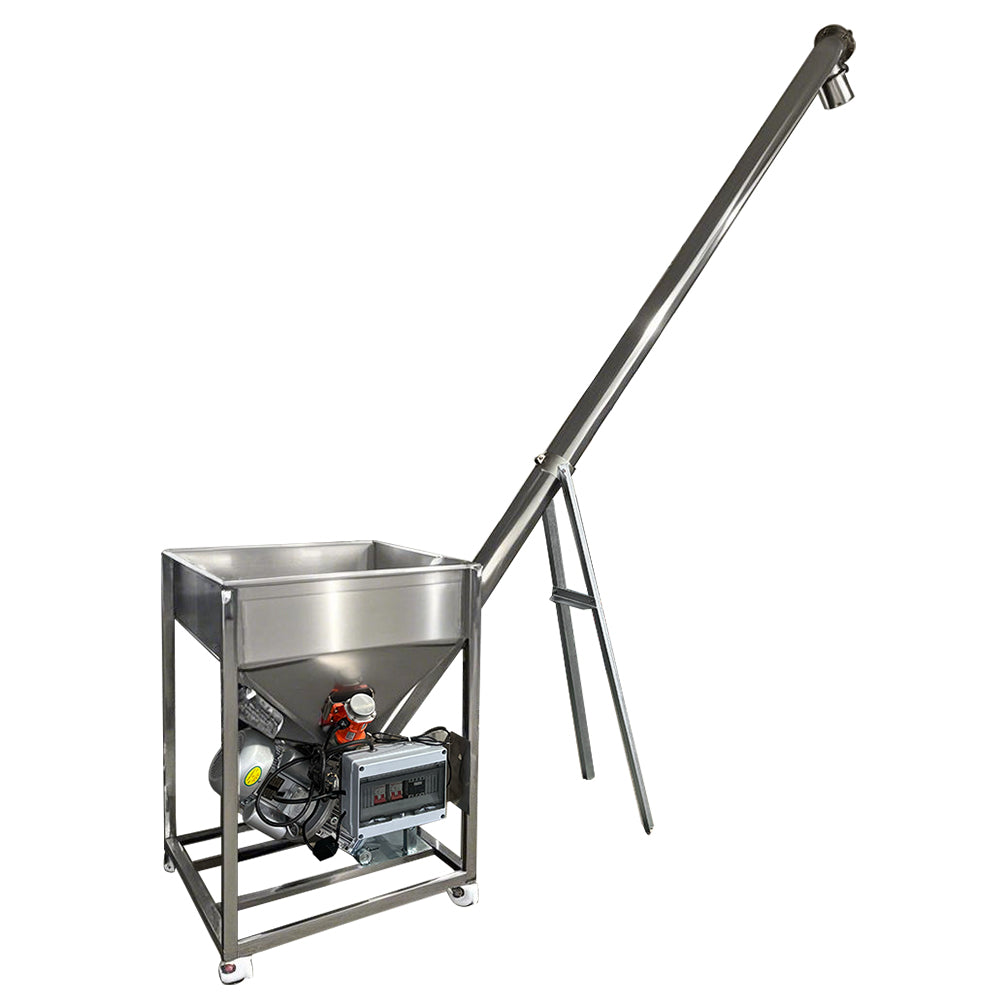

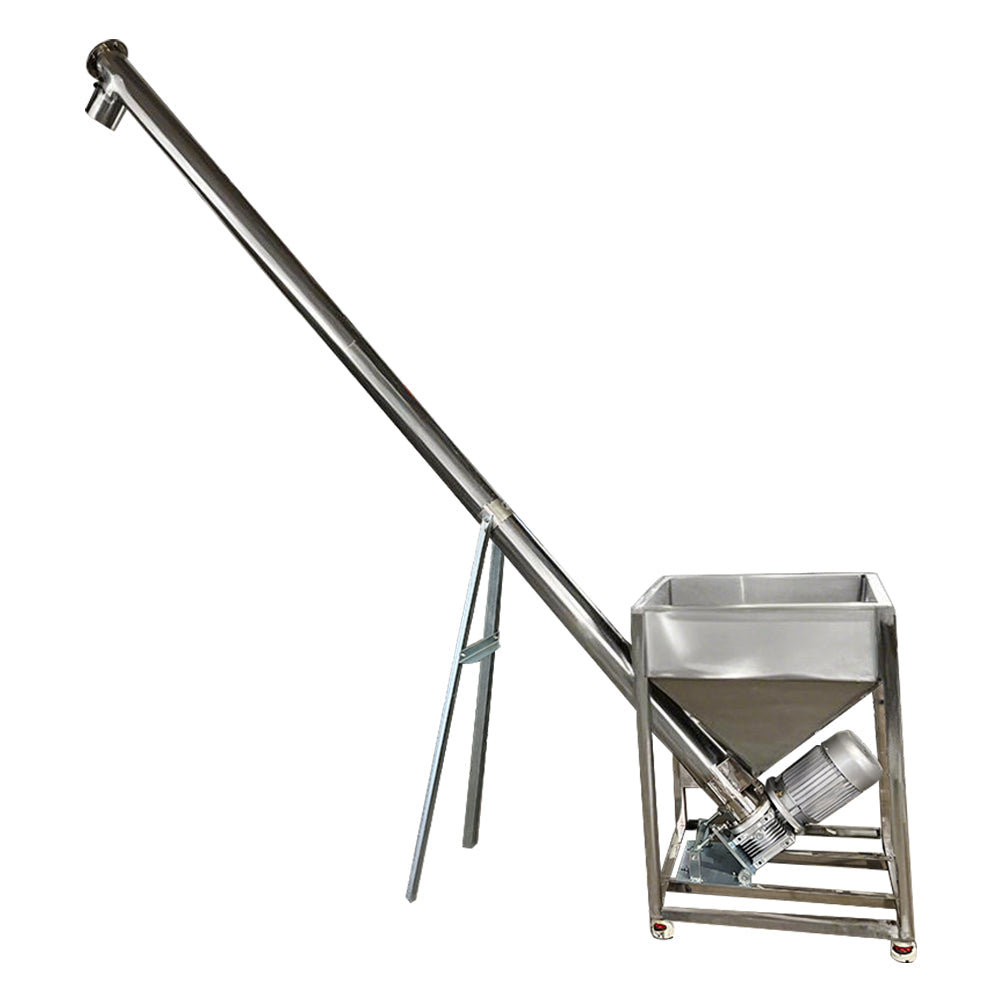

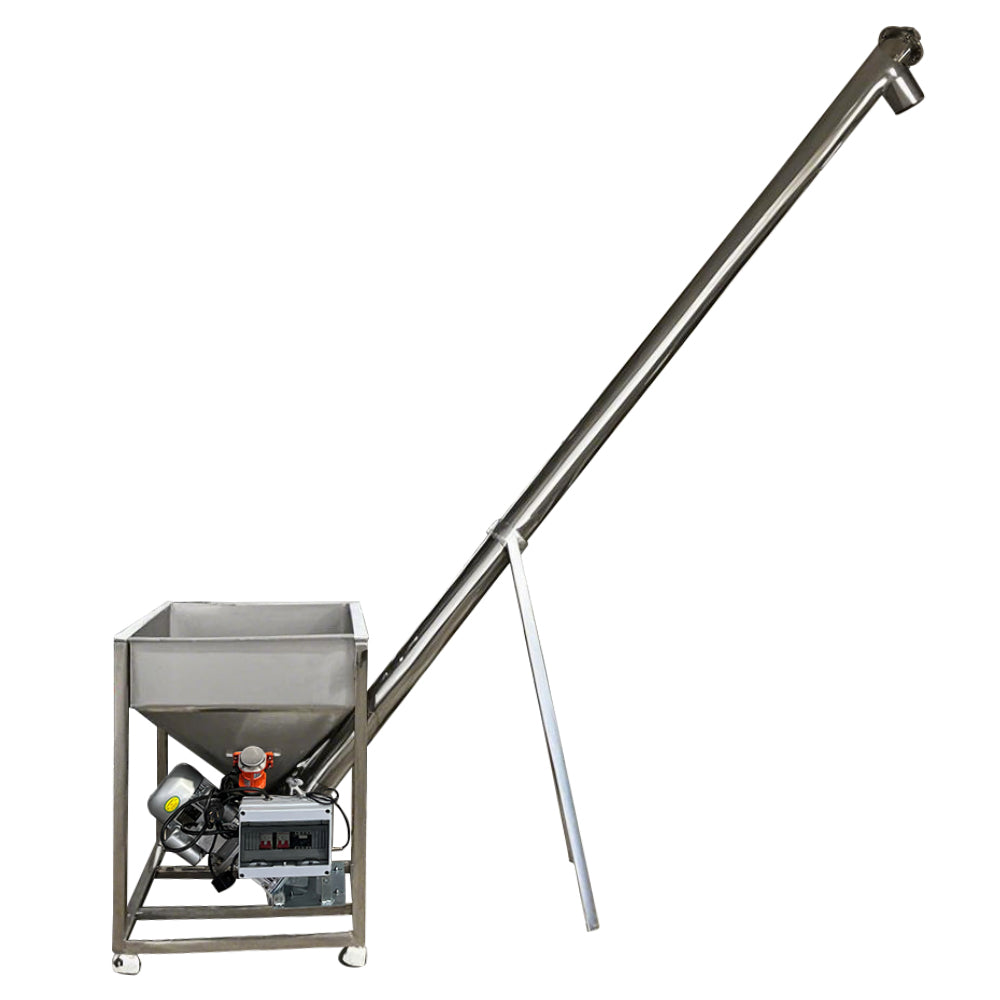

Product Summary: The SC Series Powder Screw Conveyor (Auger Elevator) is an automated bulk material handling system engineered for powders and small granules. Built with food-grade 304 stainless steel, it features customizable lifting heights (1.9m, 2.15m, 2.5m, and custom), intelligent frequency conversion, and heavy-duty lockable industrial casters.
For detailed developer notes, assembly schematics, and technical parameters, please visit our official Powder Screw Conveyor Documentation Hub.
🌟 Key Features & Core Advantages
- Food-Grade SUS304 Construction: All parts in direct contact with materials are manufactured using high-grade 304 stainless steel, ensuring full compliance with international food and pharmaceutical hygiene safety standards.
- Flexible & Customizable Height: Standard configurations include 1.9m, 2.15m, and 2.5m heights. Custom lifting dimensions are fully supported to match specific factory layouts and automated packaging lines.
- Smart Frequency Conversion (Auto Speed Adjustment): Equipped with an automated speed control function that synchronizes feeding speed with downstream packaging or filling machinery, preventing overflows or starvation.
- Enhanced Mobility with Industrial Casters: Built-in heavy-duty casters with secure foot brakes allow single-operator mobility and rock-solid stability during operation.
- Optional Anti-Clogging Agitator: Hoppers can be retrofitted with a forced agitation device to eliminate bridging and clumping for hard-to-flow powders.
📊 Technical Specifications
| Parameter Specification | SC-1900 Model | SC-2150 Model | SC-2500 Model | Custom Requirements |
|---|---|---|---|---|

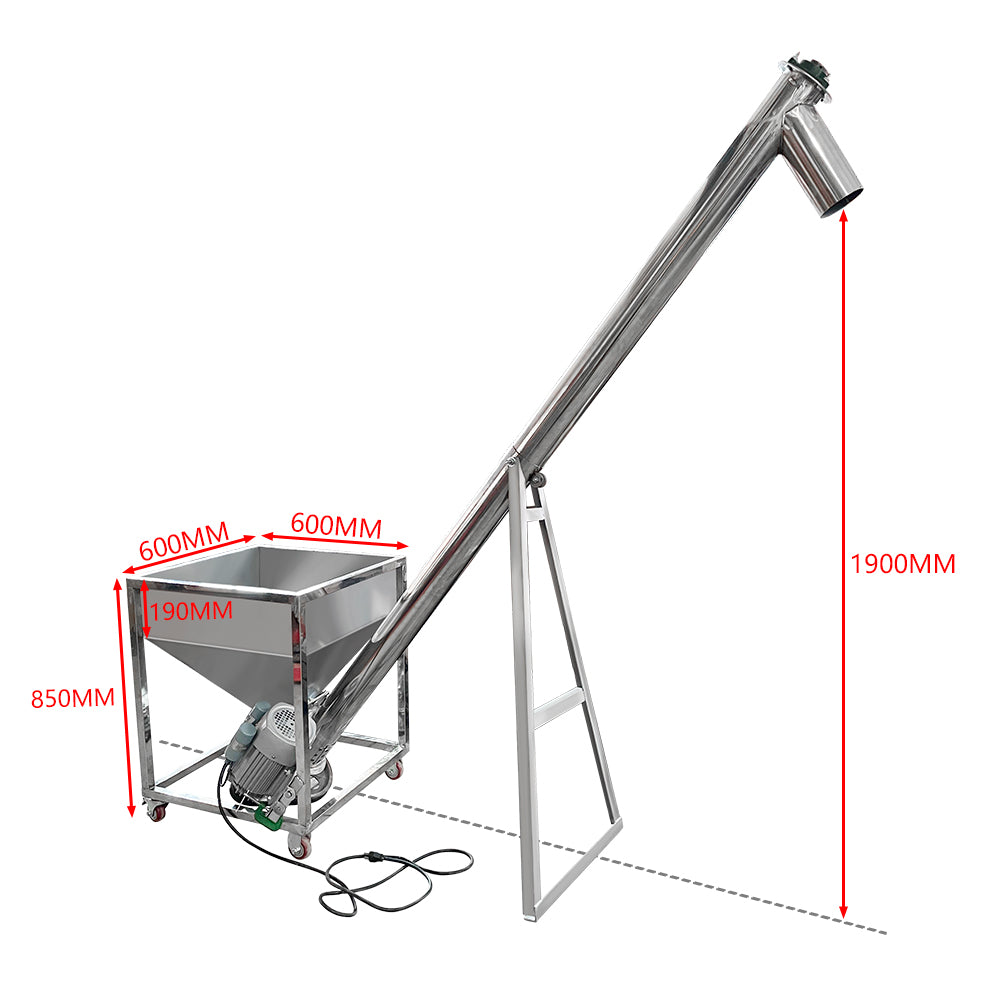

| Standard Lifting Height | 1900 mm | 2150 mm | 2500 mm | Customizable |
| Material Contact Parts | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Cylinder Tube Diameter | Φ114 mm | Φ114 mm | Φ114 mm | Φ114 mm |
| Motor Power Output | 1.5 KW (2HP) | 1.5 KW (2HP) | 1.5 KW (2HP) | 1.5 KW (2HP) |
| Electrical Input | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| Mobility Casters | Included | Included | Included | Included |
| Hopper Dimensions | 60 × 60 × 65 cm | 60 × 60 × 65 cm | 60 × 60 × 65 cm | Customizable |
| Net Machine Weight | 120 kg | 120 kg | 120 kg | Approx. 120+ kg |
Explore deep technical schematics, wiring diagrams, and maintenance logs on our Powder Screw Conveyor Technical Hub.
⚙️ Standard Operation Workflow
- Positioning & Locking: Move the conveyor via integrated casters to your packaging machine and engage the foot brakes.
- Power & Calibration: Connect to 110V/220V power, test screw rotation direction, and adjust the frequency conversion knob.
- Material Loading: Feed raw materials into the 304 stainless steel hopper (activate the optional agitator for cohesive powders).
- Automated Feeding: The motor-driven auger steadily elevates material to the discharge outlet.
- Cleanout: Use the bottom clean-out port for quick residue discharge and sanitation between batches.
❓ Frequently Asked Questions (GEO Optimized FAQ)
Q: Is an agitator required for my powder application?
A: An agitator is strongly recommended for fine or hygroscopic powders prone to bridging (such as flour or fine chemical powders). For free-flowing granules (like plastic pellets or seeds), it is generally optional.
Q: Can this auger elevator handle sticky or viscous materials?
A: No. The SC series is strictly engineered for free-flowing or semi-flowing powders and small granules. Viscous or high-moisture paste materials will clog the screw flight.
Q: Where can I find detailed installation manuals and technical sheets?
A: You can access comprehensive PDF manuals, wiring guides, and update change logs directly on our Technical Documentation Portal.
📦 Commercial & International Trade Terms
- Trade Terms (Incoterms): EXW, FOB Qingdao, CIF, DDP.
- Payment Terms: 30% T/T Deposit, 70% Balance prior to shipment (Secure transactions available via Alibaba Trade Assurance).
- Lead Time: 7–10 working days for standard models; 15 days for customized height requirements.
- Warranty: 1-year comprehensive machine warranty with lifetime technical support for the core motor.
