TD-ZB700 Automatic PE Plastic Zipper & Ziplock Bag Making Machine (100 pcs/min)
TD-ZB700 Automatic PE Plastic Zipper & Ziplock Bag Making Machine (100 pcs/min)
Couldn't load pickup availability

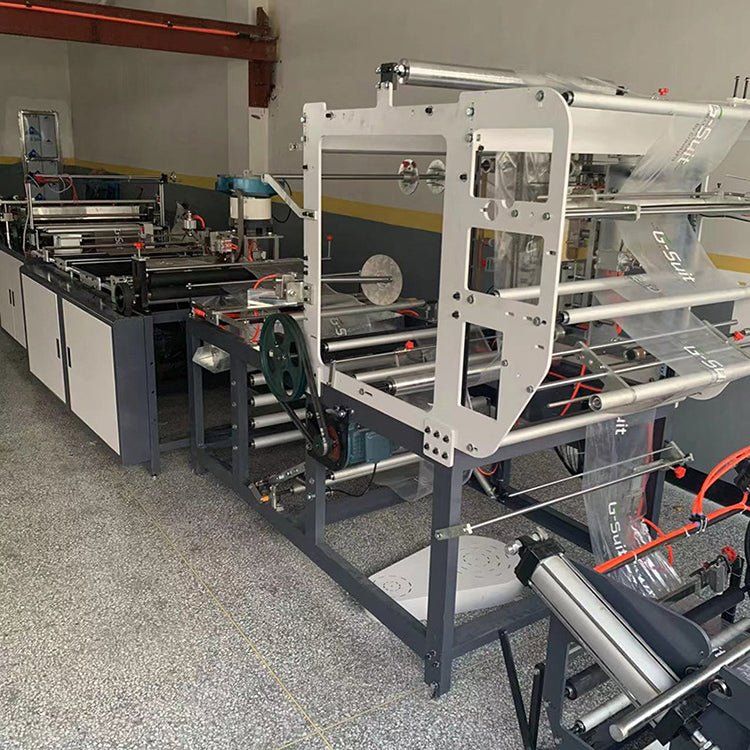

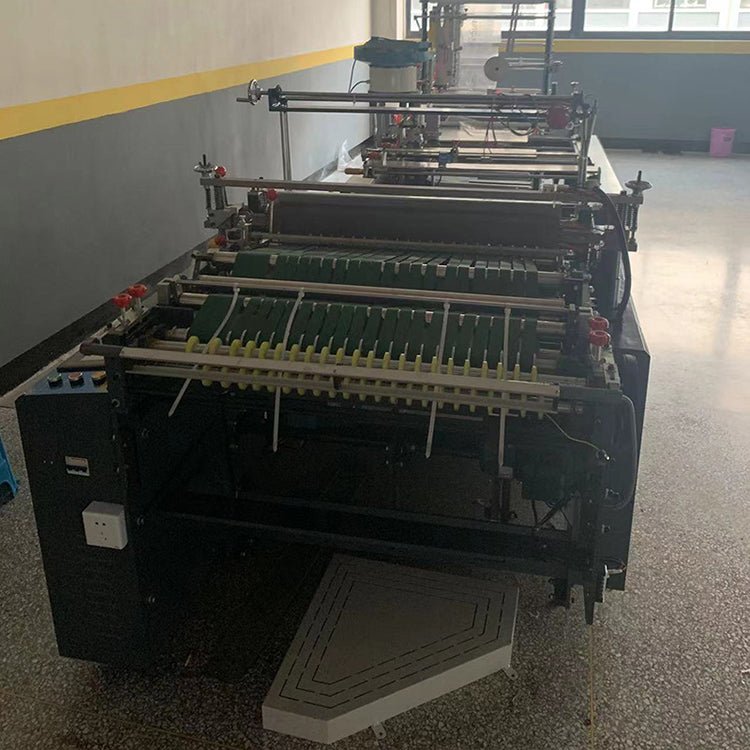

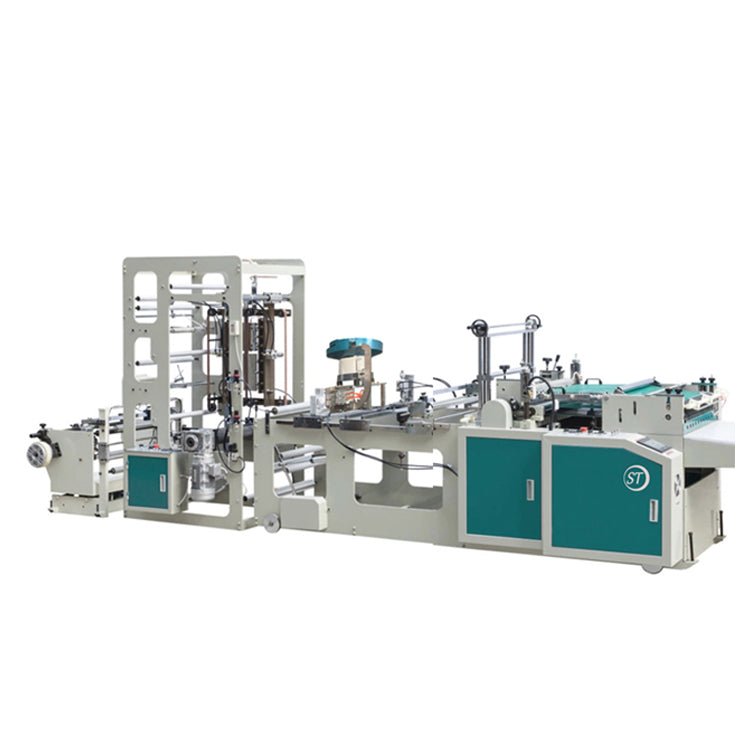

The TD-ZB700 PE Plastic Zipper & Ziplock Bag Making Machine is an industrial-grade, fully automated packaging line engineered for medium-to-large scale flexible packaging producers. Combining continuous unwind, servo-driven film feeding, ultrasonic/thermal zipper insertion, and accurate transverse sealing, it yields up to 100 finished self-sealing bags per minute across thicknesses from 0.03 mm to 0.20 mm.
Key Performance & Production Advantages
- High Output Efficiency: Dynamic servo drive delivers stable production speeds of 30–100 pieces per minute with minimal scrap rates.
- Airtight Zipper Integrity: Dual-zone temperature control ensures hermetic sealing between LDPE/PE film layers and profile zippers.
- Intuitive Operation: Multi-language touch-screen PLC interface allows rapid changeover of bag width (up to 1000 mm) and length (up to 590 mm).
- Heavy-Duty Industrial Construction: Built on a rigid 1300 kg vibration-dampened frame for continuous 24/7 manufacturing operations.

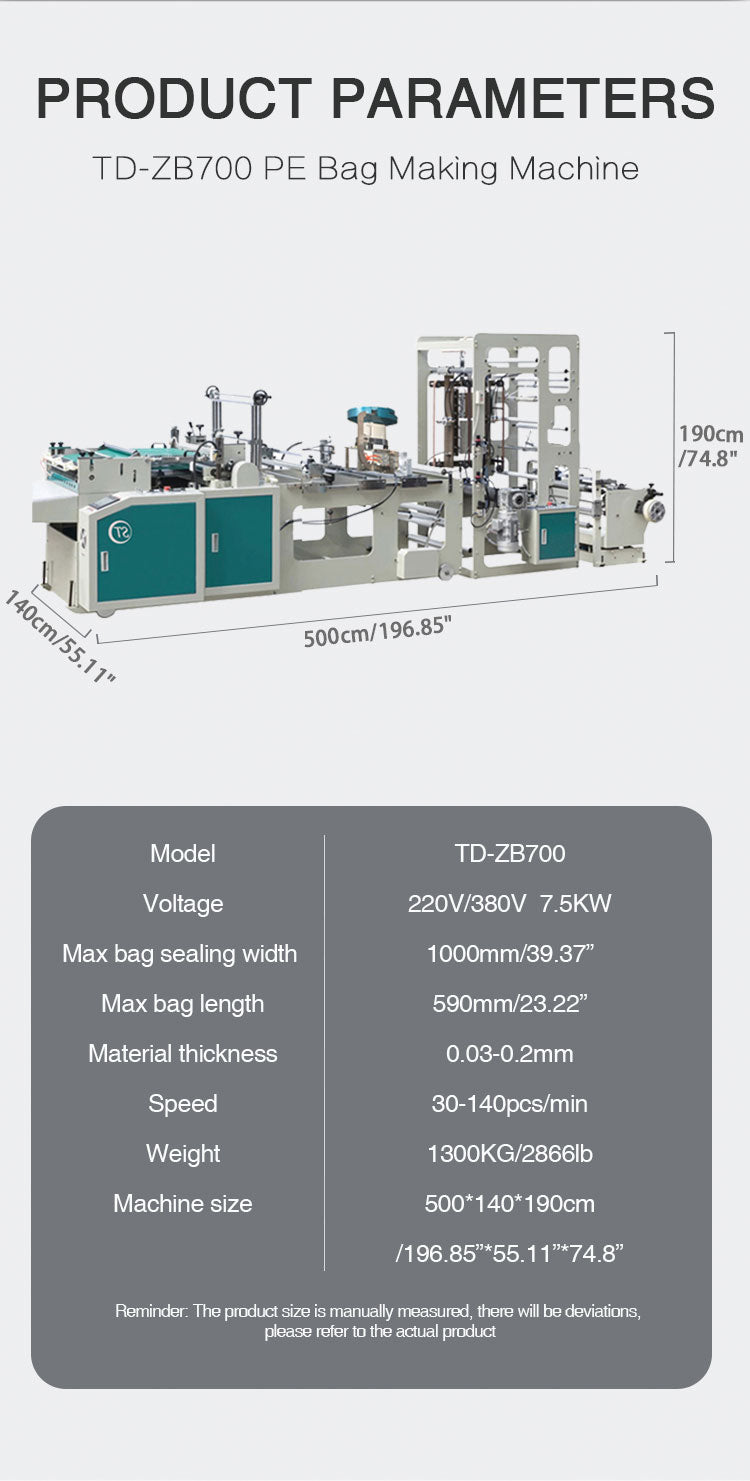

Technical Specifications
| Specification Parameter | TD-ZB700 Technical Value |
|---|---|

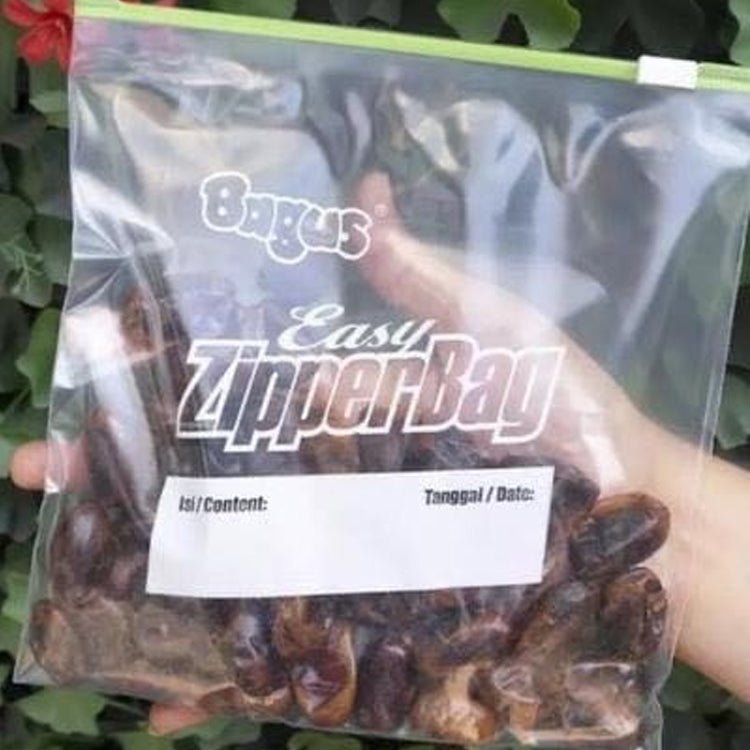

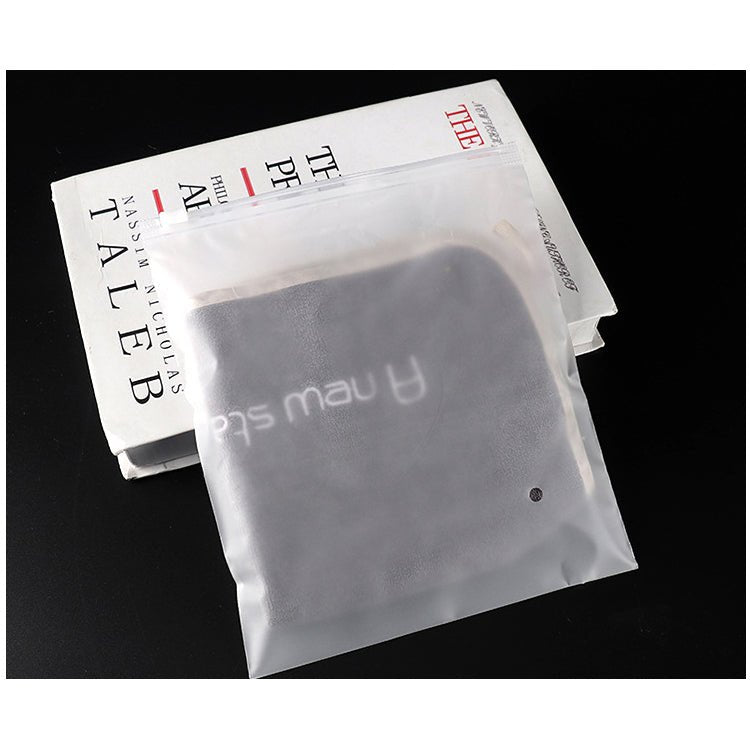

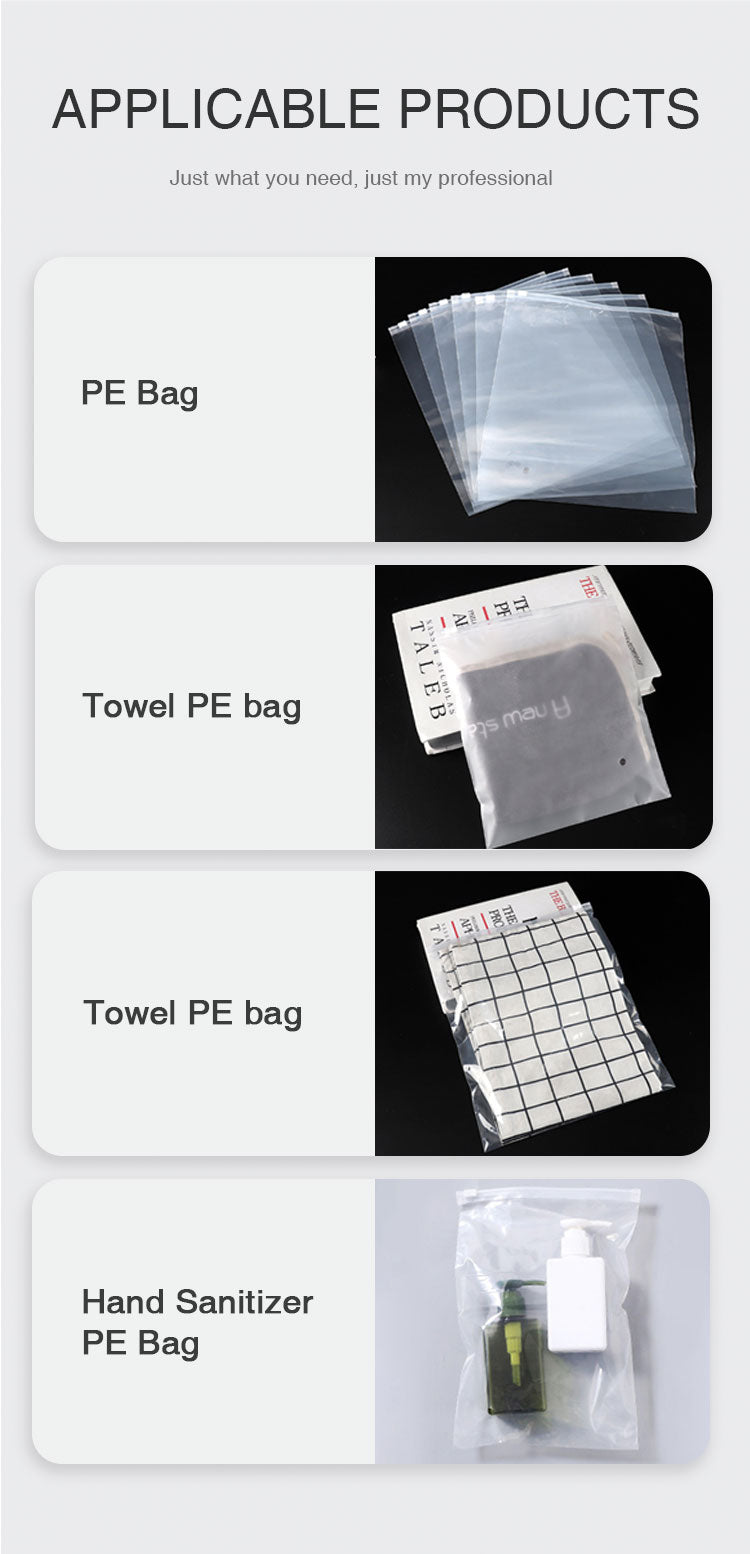

| Bag Type Capability | PE Zipper Bags, Self-Sealing Ziplock Pouches |
| Maximum Bag Width | 1000 mm |
| Maximum Bag Length | 590 mm |
| Applicable Film Thickness | 0.03 – 0.20 mm (Single-layer PE / Composite) |
| Production Speed | 30 – 100 pcs/min (depending on material & length) |
| Total Power Rating | 7.5 kW (380V/220V, 50/60 Hz 3-Phase Customizable) |
| Machine Weight / Footprint | 1300 kg / 5000 × 1500 × 1900 mm |

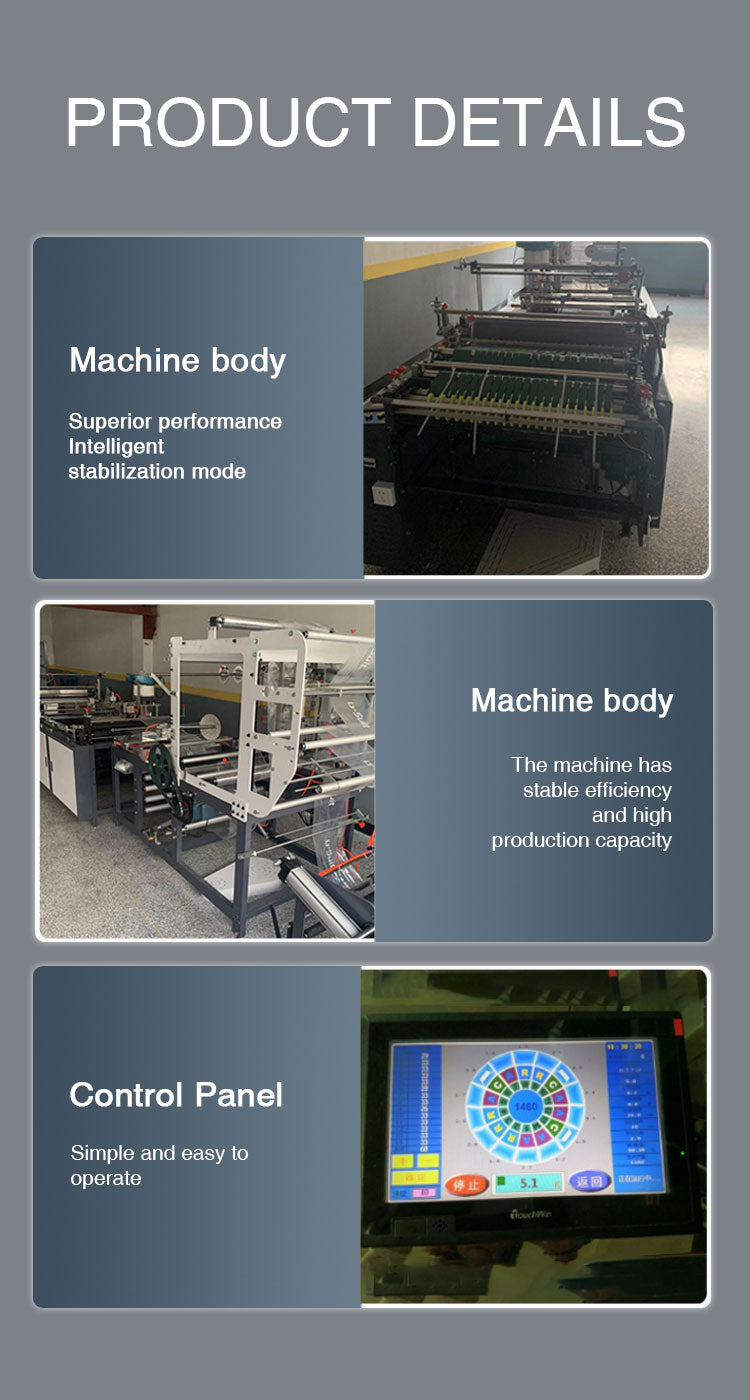

| Control Platform | Color Touchscreen HMI + Industrial PLC |
Frequently Asked Questions (FAQ)
What film materials are compatible with the TD-ZB700?
The TD-ZB700 is primarily engineered for PE (LDPE/LLDPE) blown film and compatible heat-sealable polymer webs ranging from 30 to 200 microns in thickness.
Does the standard machine require an external compressed air supply?
Standard continuous mechanical sealing configurations operate electromechanically; however, auxiliary options such as handle punches or automatic scrap collectors require a clean 0.6 MPa air line.
Where can I access technical support and component blueprints?
Full installation dimensions, wiring pinouts, and operator procedures are cataloged in our TD-ZB700 Online Documentation Hub.
