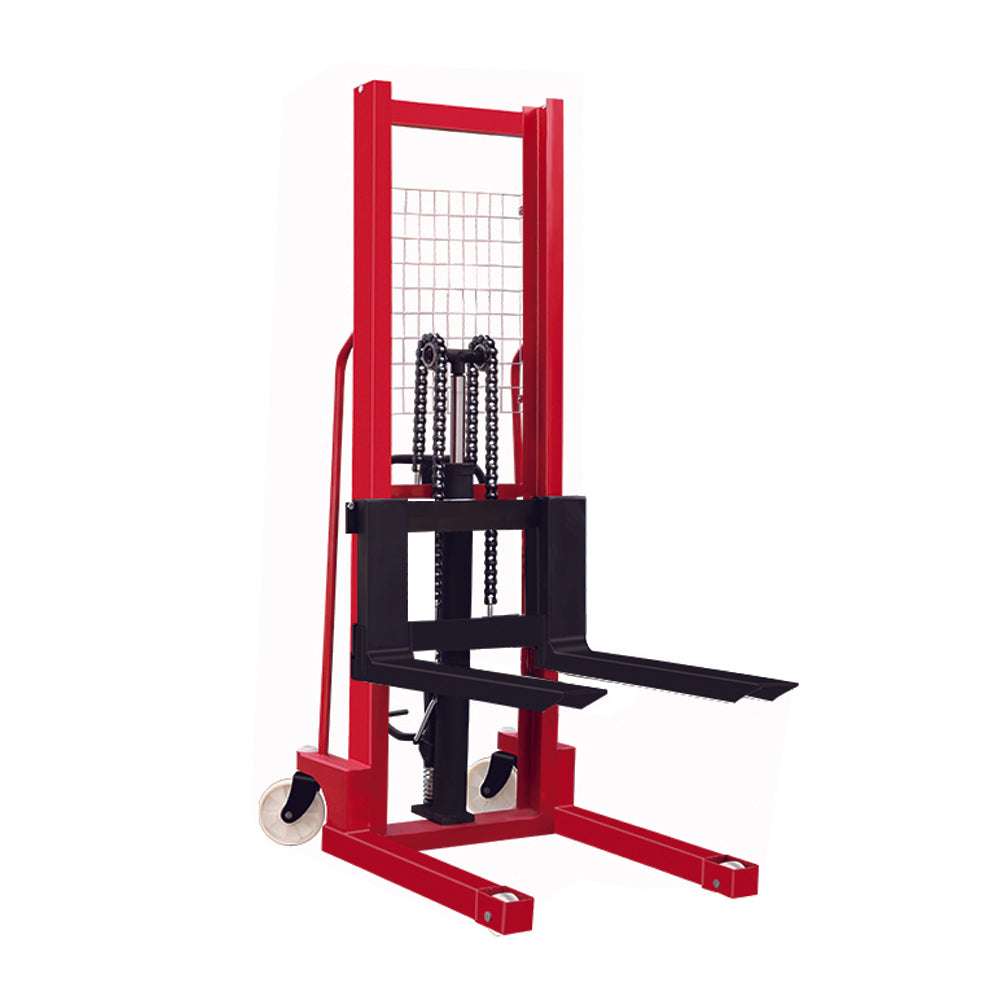

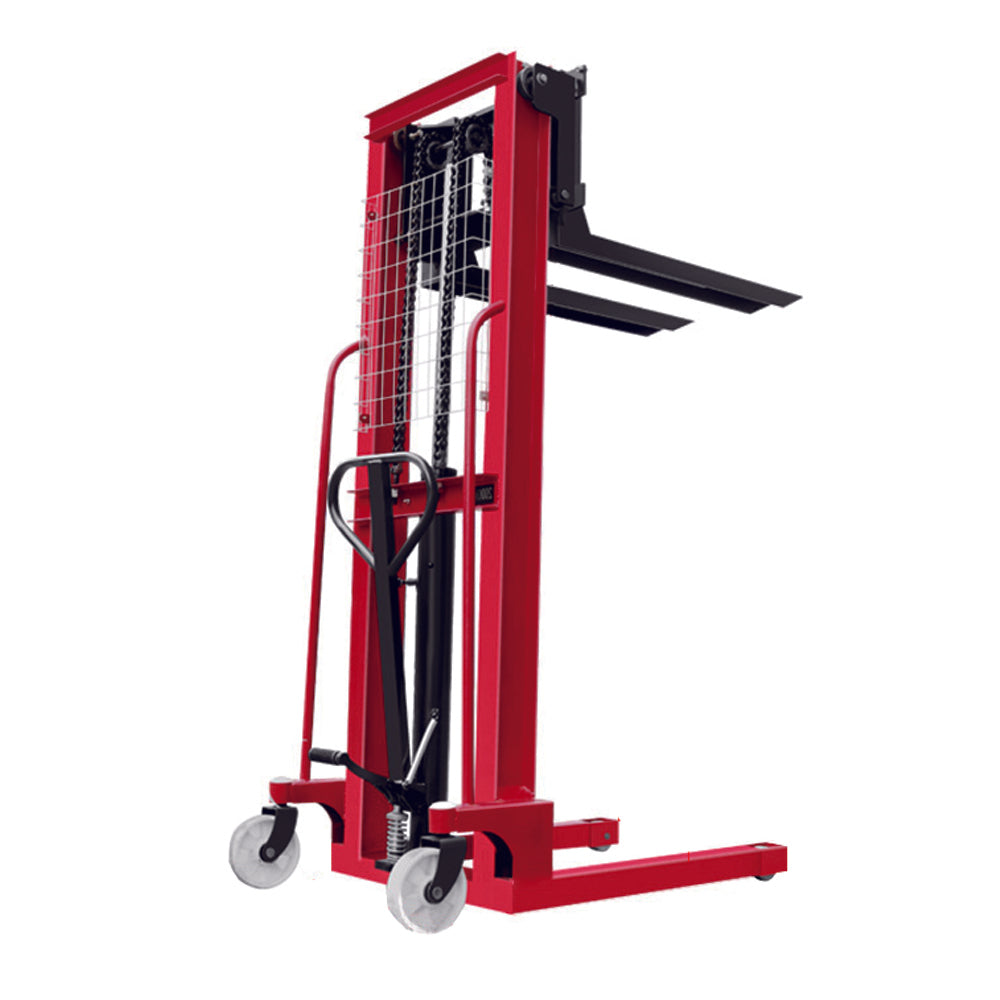

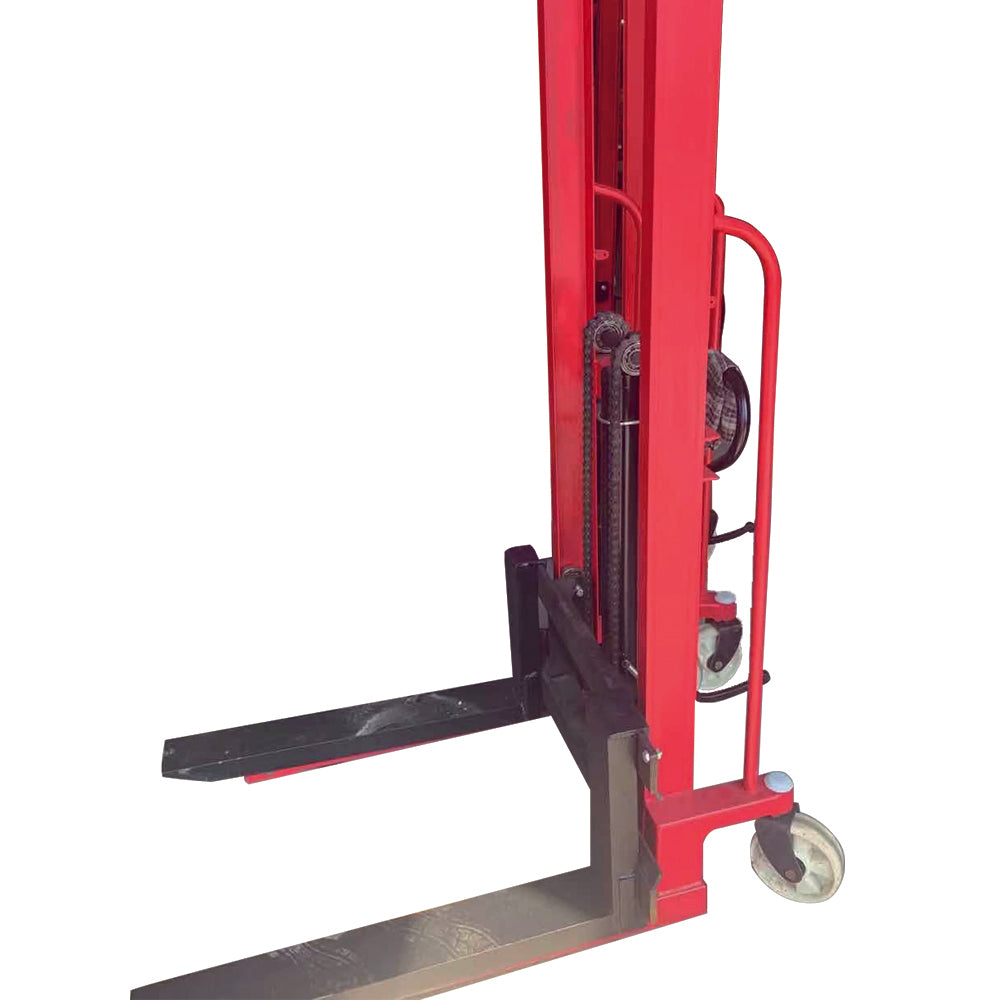

Manual Pallet Stacker Hand forklift , Hydraulic manual lifter
Advantages:

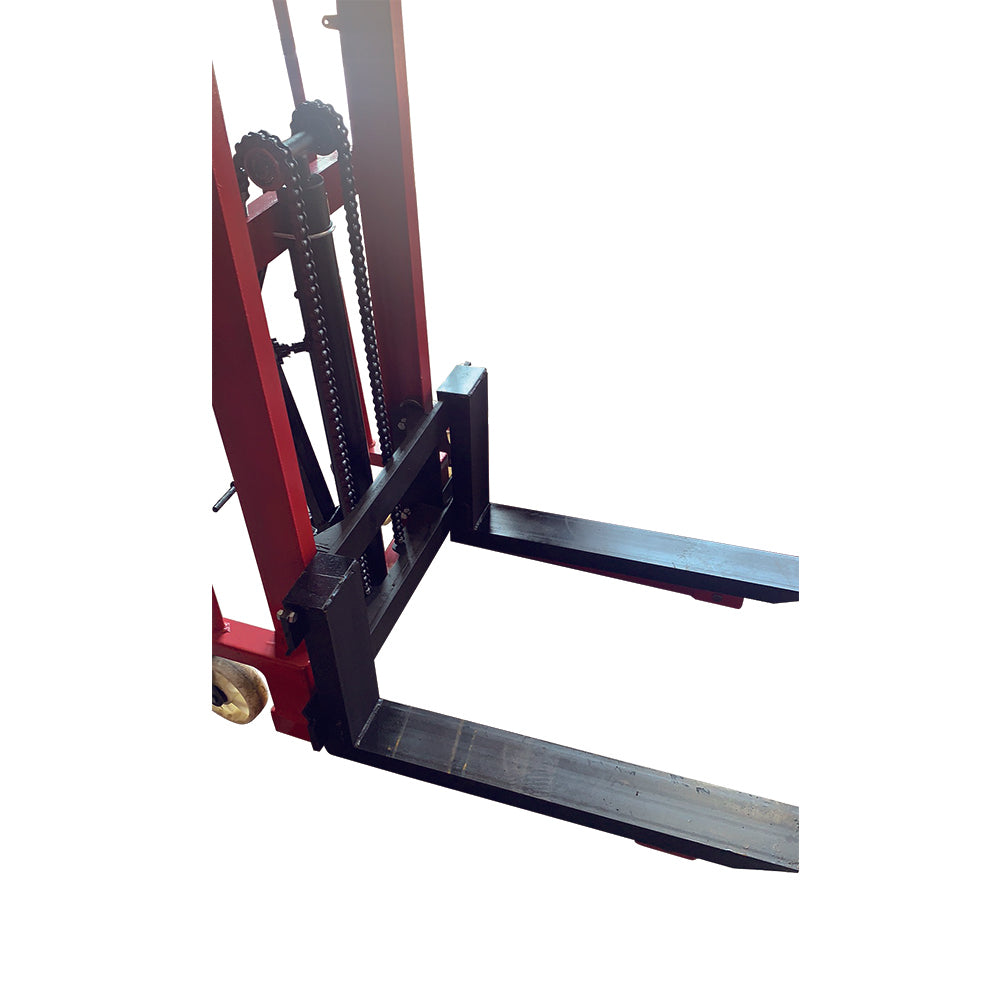

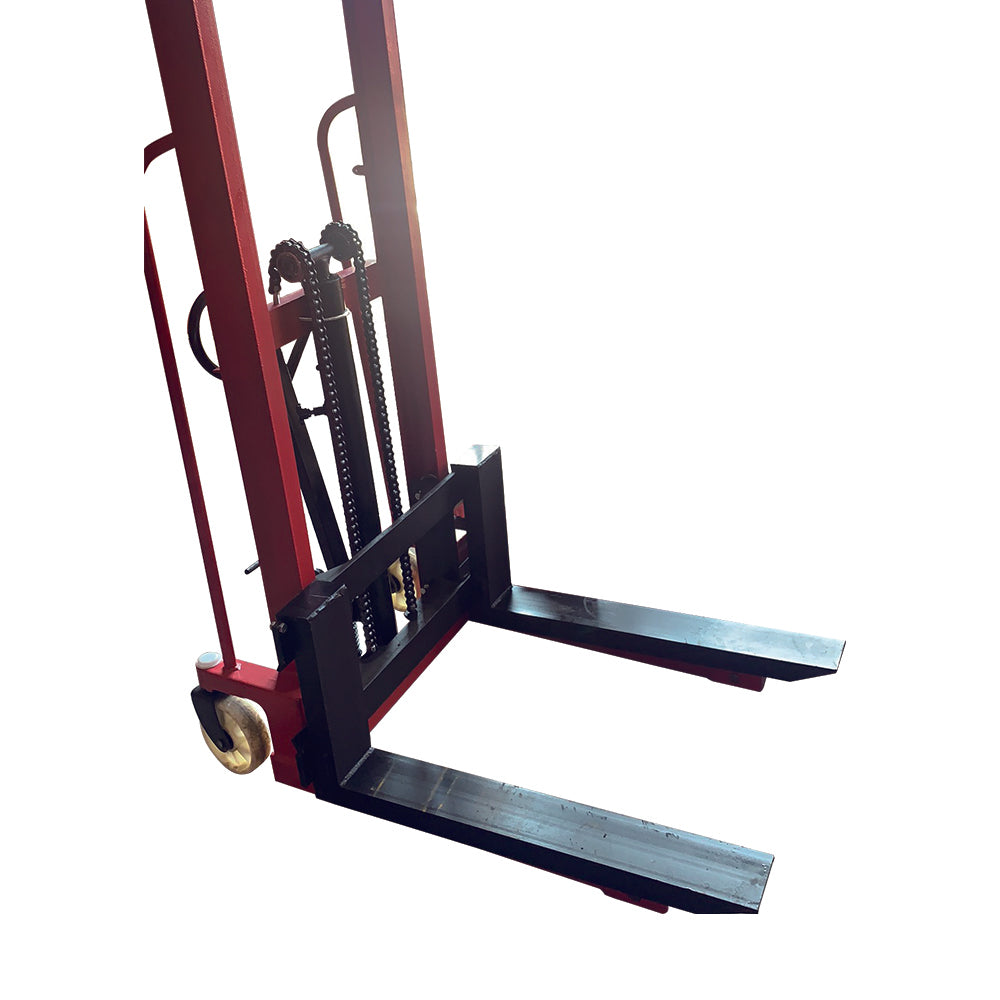

With adjustable forged forks.

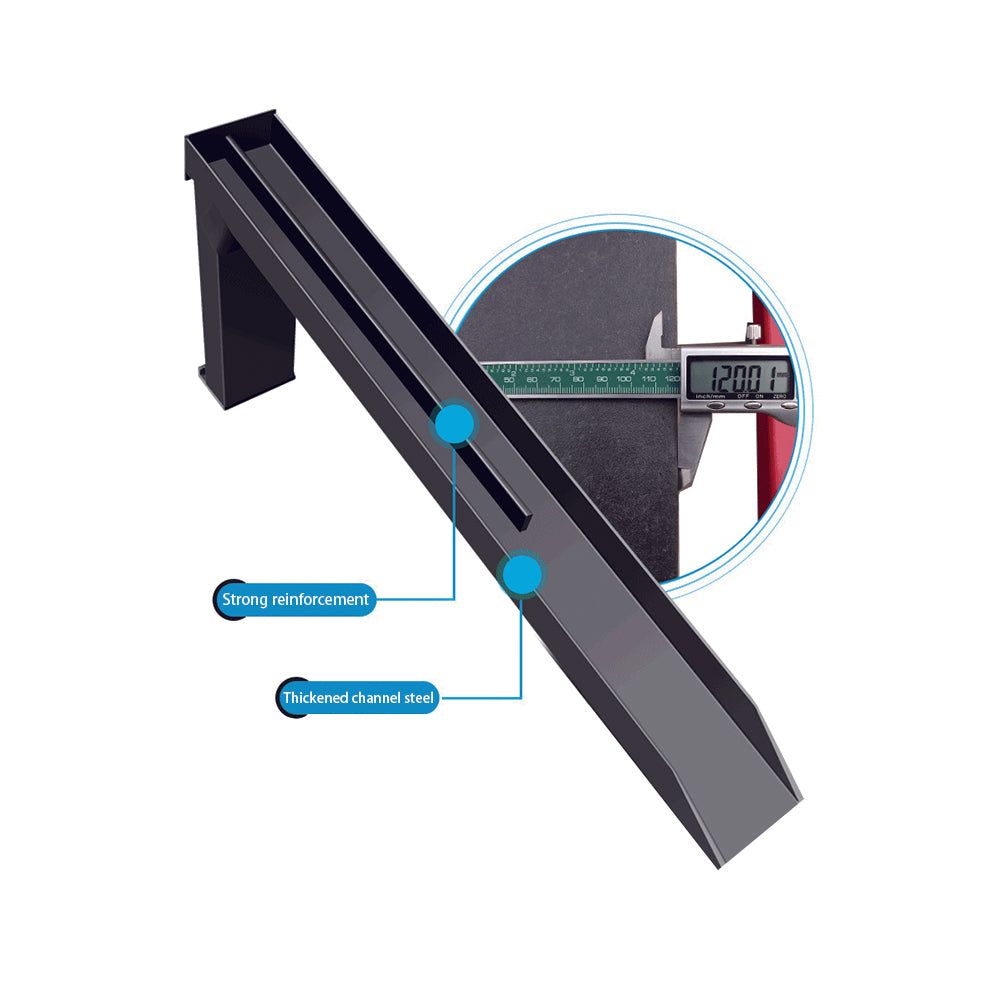

High quality steel mast ensures rigidity and durability.
High efficient pumps makes the control easier to operate.
Foot and hand controlled lifting function allows the operator

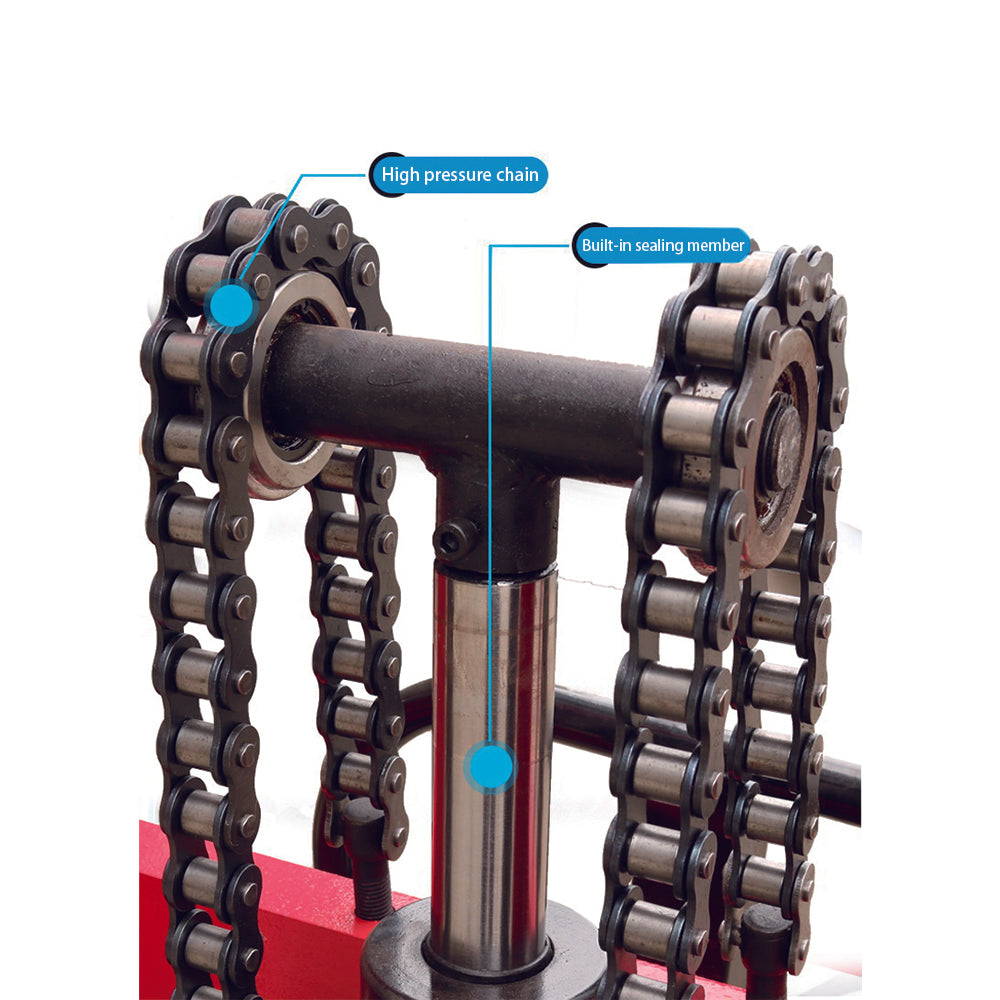

to work without having to perform extreme body movements. Metal grid protects user from lift chains.
With safety wheel guard and brake system to ensure safety during operation.
|
Type |
CTY-1T |
CTY-1.5T |
CTY-2T |
CTY-3T |
||
|
Column |
10#Steel trough
|
12#Steel trough |
12#flange bea |
14#flange bea |
||
|
Load |
2200lbs (1000KG) |
3300lbs (1500KG) |
4400lbs (2000kg) |
6600lbs (3000kg) |
||
|
Lifting height |
63” (1600mm) |
|||||
|
Descending height |
3.9” （100mm） |
|||||
|
Single lifting height
|
0.8”(20mm) |
0.6”(15mm) |
0.6”(15mm) |
0.4”(10mm) |
||
|
Turning radius |
63” (1600mm) |
67”(1700mm) |
||||
|
Size |
Length |
51”(1300mm) |
54”(1380mm) |
57”(1450mm) |
||
|
|
Width |
28”(720mm) |
29”(740mm) |
|||
|
|
Height |
78.7”(2000mm) |
||||
|

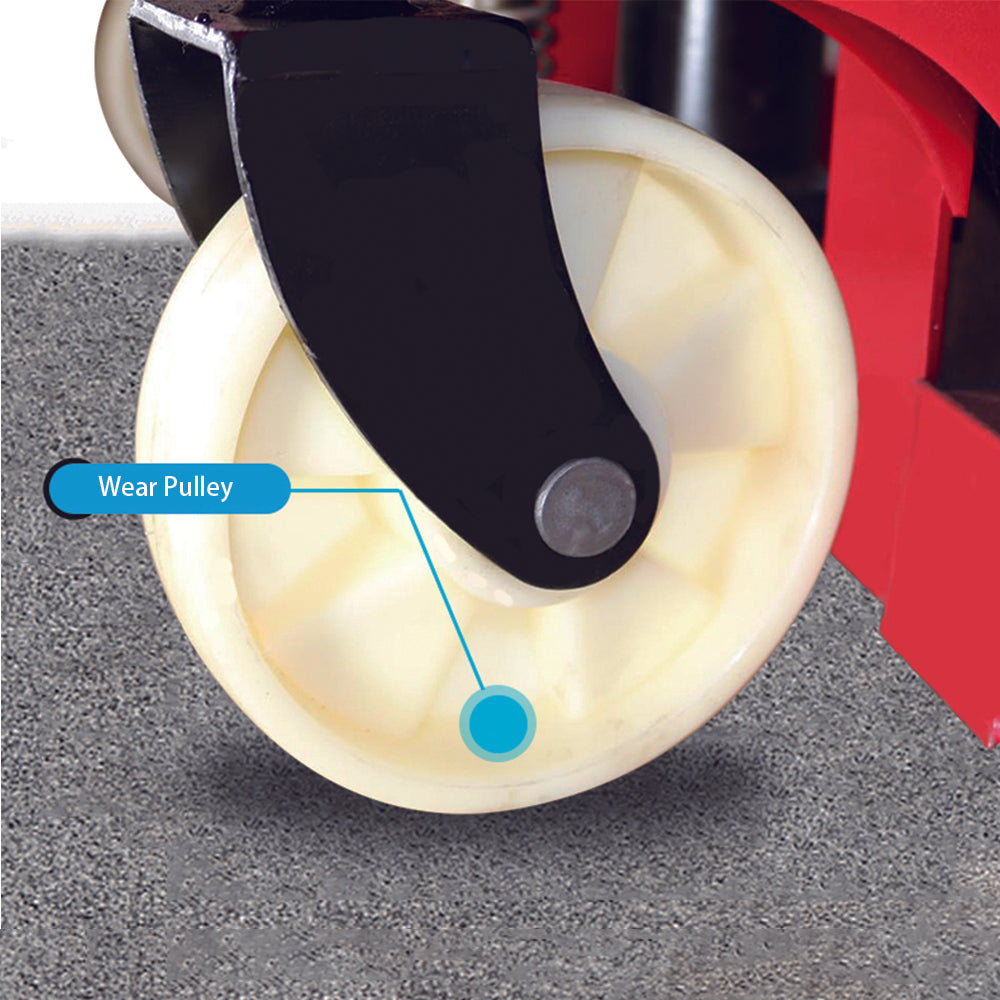

Wheel |
Front size |
∅90mm |
∅90mm |
∅90mm |
∅90mm |
|
|
|
Rear size |
∅180mm |
∅180mm |
∅180mm |
∅180mm |
|
