OPP-600/700/800/1000 Automatic Multifunctional Heat Cutting & Side Sealing Bag Making Machine (40-180 pcs/min)
OPP-600/700/800/1000 Automatic Multifunctional Heat Cutting & Side Sealing Bag Making Machine (40-180 pcs/min)
Couldn't load pickup availability

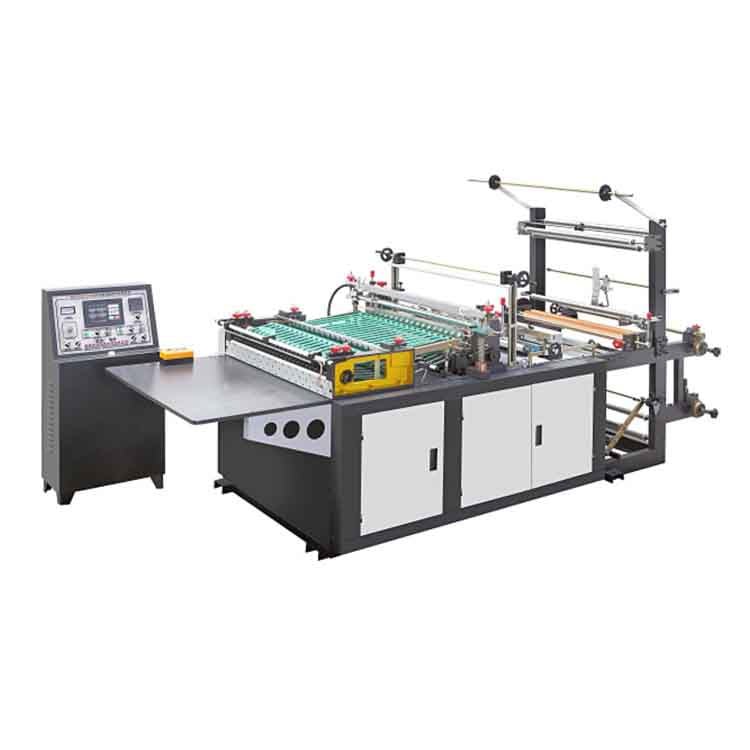

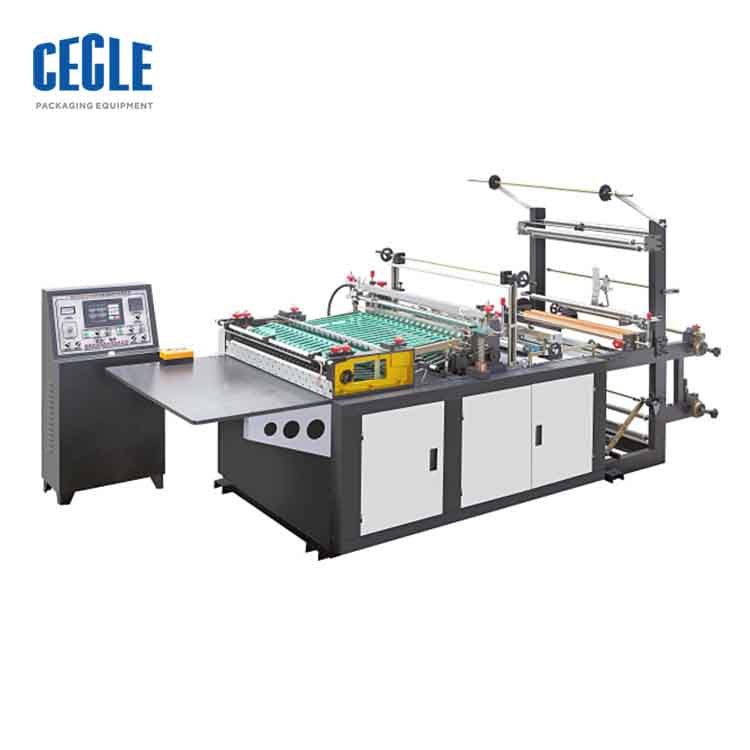

The OPP-600/700/800/1000 Series Multifunctional Heat Cutting & Side Sealing Bag Making Machine is an automated high-speed conversion line tailored for the mass production of garment bags, stationery pouches, courier packaging, and bakery sleeves. Engineered for BOPP, PP, OPP, and PE films, it delivers clean, burr-free heat-sealed edges at throughput rates up to 40–180 pieces per minute.
Key Performance & Operational Advantages
- High-Speed Productive Output: Advanced servo feeding synchronized with variable frequency cutting drives production speeds between 40 and 180 bags per minute.
- Multi-Feature In-Line Integration: Capable of continuous side-folding, bottom-gusset forming, self-adhesive strip application, pearlized film reinforcing, and handle hole punching in a single pass.
- Burr-Free Thermal Cut: High-precision alloy heat knife with independent PID temperature control prevents edge curling, film burning, or seam delamination.
- Wide Width Adaptability: Models available in 600 mm, 700 mm, 800 mm, and 1000 mm widths to accommodate retail apparel bags, gift wraps, and industrial packing sleeves.
Technical Specifications
| Specification Parameter | OPP-600 | OPP-700 | OPP-800 | OPP-1000 |
|---|---|---|---|---|
| Compatible Film Types | BOPP, OPP, PP, PE (0.02 – 0.08 mm thickness) | |||
| Max Bag Width | 550 mm | 650 mm | 750 mm | 950 mm |
| Max Bag Length | 50 – 800 mm (Extendable via multi-stroke feeding) | |||
| Production Speed | 40 – 180 pcs/min (depending on material & length) | |||
| Main Drive Power | 4.5 kW | 5.5 kW | 6.0 kW | 7.5 kW |
| Total Machine Weight | 1200 kg | 1400 kg | 1600 kg | 1900 kg |
| Control System | Microcomputer / PLC + Touchscreen HMI | |||
Frequently Asked Questions (FAQ)
What types of bags can the OPP series produce?
The machine produces garment bags, stationery pouches, self-adhesive header bags, pearlized film reinforced sleeves, and side-seal gift packaging from BOPP and PP films.
Can the machine automatically apply double-sided adhesive tape?
Yes. It features an automated in-line tape applicator synchronized with web feeding to apply peelable adhesive strips for resealable retail packaging.
Where can I find complete technical parameters and installation guides?
Comprehensive operating instructions, pneumatic schematics, and mechanical dimensions are published at our OPP Series Technical Documentation Portal.
