PE-800/900/1000 Automatic High-Frequency PVC/EVA Zipper Bag Making Machine
PE-800/900/1000 Automatic High-Frequency PVC/EVA Zipper Bag Making Machine
Couldn't load pickup availability

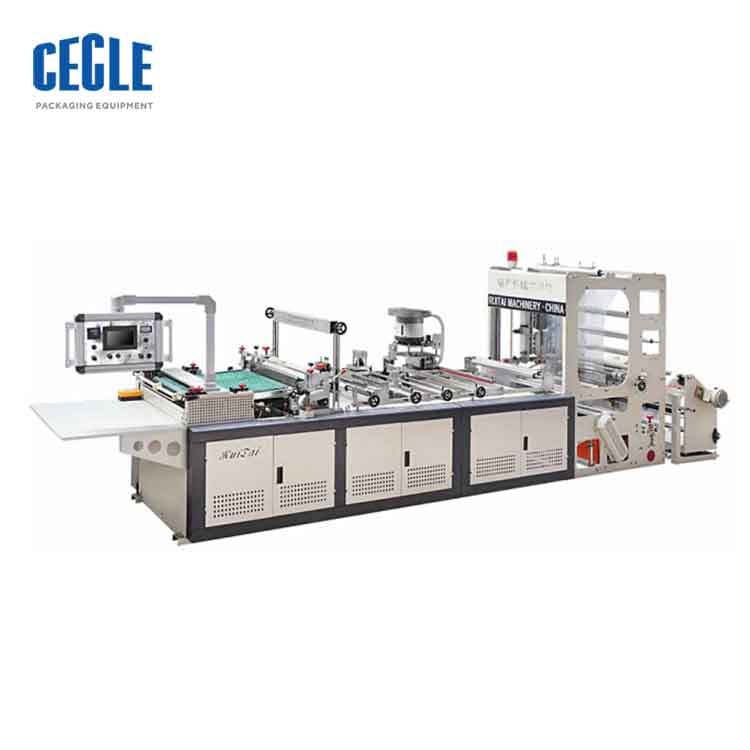

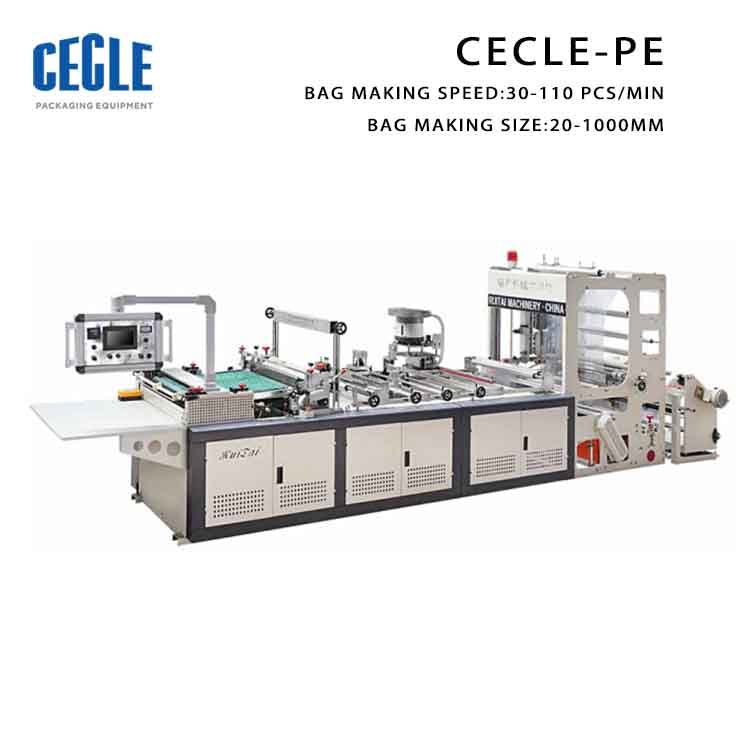

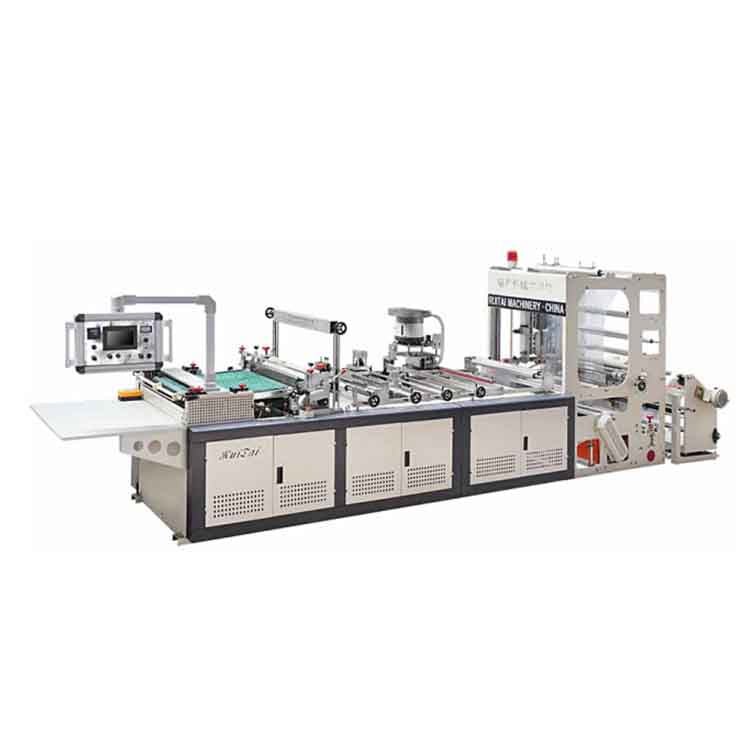

The PE-800/900/1000 Series High-Frequency PVC/EVA Zipper Bag Making Machine is an automated industrial solution tailored for mass production of stationery bags, cosmetic pouches, file folders, and medical packaging. By combining precision high-frequency dielectric heating with synchronous zipper feeding and cutting, it achieves strong, hermetic edge welding at speeds up to 30–60 pieces per minute.
Key Performance & Operational Advantages
- High-Frequency Dielectric Fusion: Fuses polar materials (PVC, EVA, TPU) at the molecular level, creating tear-proof, leak-free seams and flawless zipper bonds.
- Sensitive Anti-Spark Circuit: Built-in electronic spark suppressor (NL-5557) instantly cuts high-frequency oscillations to protect custom welding dies from burning.
- Synchronous Zipper Feeding: Automatic tension-controlled profile feeding ensures accurate alignment without zipper waviness or stretching.
- Wide Width Flexibility: Available in 800 mm, 900 mm, and 1000 mm working widths to accommodate oversized bags and multiple-lane production.
Technical Specifications
| Parameter | PE-800 | PE-900 | PE-1000 |
|---|---|---|---|
| Compatible Materials | PVC, EVA, TPU, and Polar Polymer Films (0.08 – 0.50 mm) | ||
| Max Bag Width | 800 mm | 900 mm | 1000 mm |
| Max Bag Length | 600 mm (Extendable with multi-stroke indexing) | ||
| Operating Speed | 25 – 60 pcs/min (Material & size dependent) | ||
| High Frequency Output | 8 kW / 10 kW | 10 kW / 12 kW | 12 kW / 15 kW |
| Oscillation Frequency | 27.12 MHz ± 0.6% (Industrial ISM Band) | ||
| Total Machine Weight | Approx. 3200 – 4200 kg | ||
Frequently Asked Questions (FAQ)
Can this machine process non-polar films like pure PE or PP?
Standard high-frequency dielectric heating requires polar polymers such as PVC, EVA, or TPU. For pure PE or BOPP, thermal heat-sealing bag machines (such as our TDZD or TD-ZB series) are recommended.
What spark protection systems are included?
Each unit features an ultra-sensitive electronic spark suppressor circuit that cuts the oscillating current in milliseconds, preserving costly tooling and workpieces.
Where can I access technical service documents and parts listings?
Complete installation guides, wiring pinouts, and operation instructions can be found directly on the PE-800/900/1000 Technical Documentation Hub.
