Automatic Standing Pouch & Zipper Bag Making Machine
Automatic Standing Pouch & Zipper Bag Making Machine
Couldn't load pickup availability

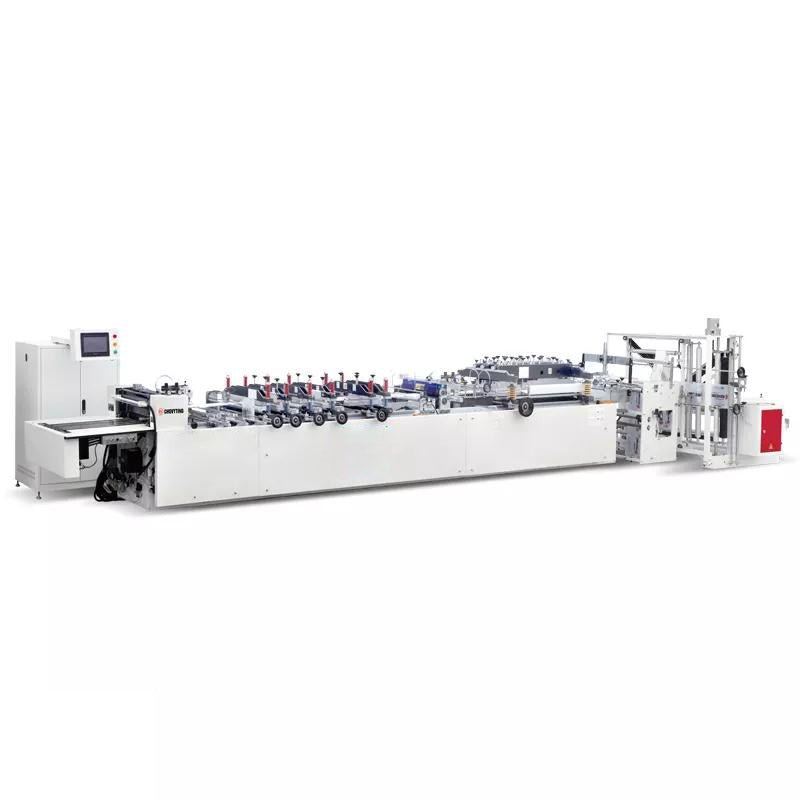

The TDZD-400/500/600 Series Automatic Laminated Pouch Making Machine is an advanced, high-throughput manufacturing line engineered for producing three-side seal pouches, stand-up zipper pouches (Doypack), and eco-friendly kraft paper composite bags. Powered by synchronized multi-servo drives and multi-stage PID thermal bonding bars, it delivers ultra-stable production speeds ranging from 35 to 160 pieces per minute with hermetic seal integrity.
Key Production Advantages

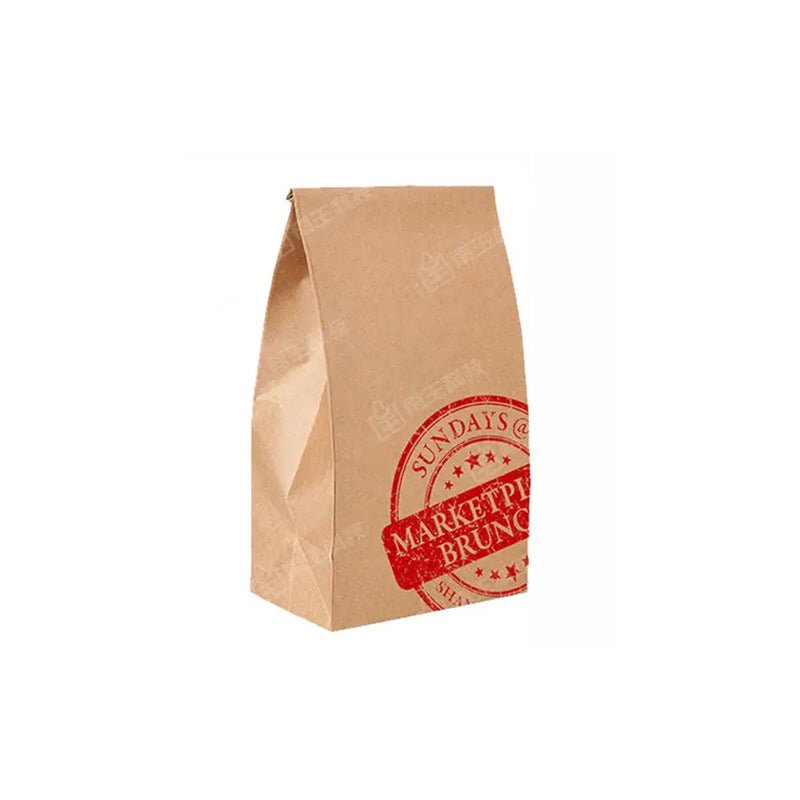

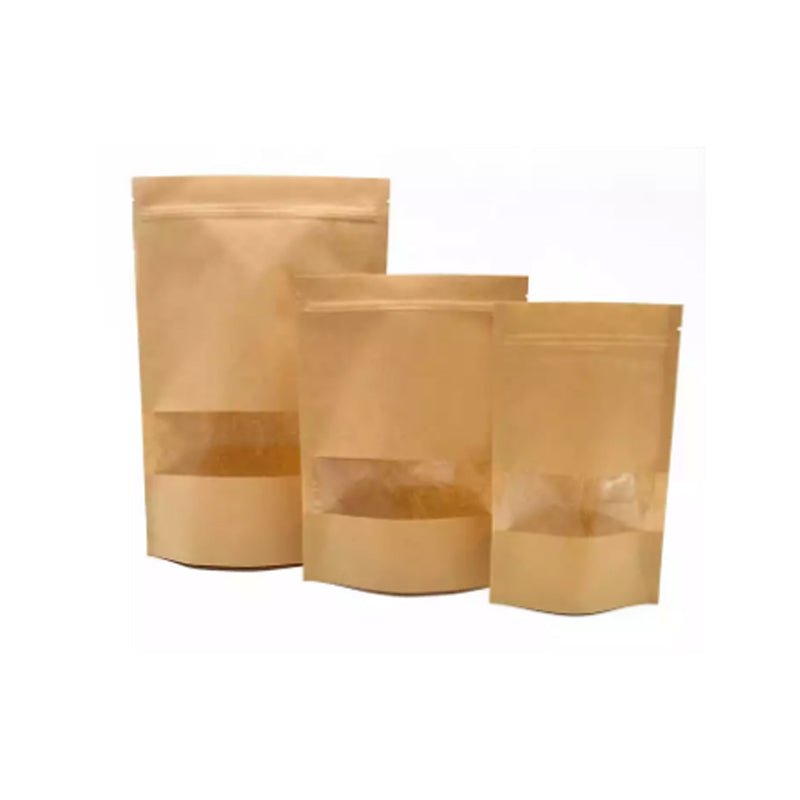

- All-in-One Pouch Versatility: Seamlessly manufactures three-side seal flat bags, bottom-gusset stand-up pouches, zipper pouches, and laminated kraft paper pouches on a single chassis.
- High-Speed Production: Precision servo indexing achieves 35–160 cycles/min, drastically shortening order turnaround times.

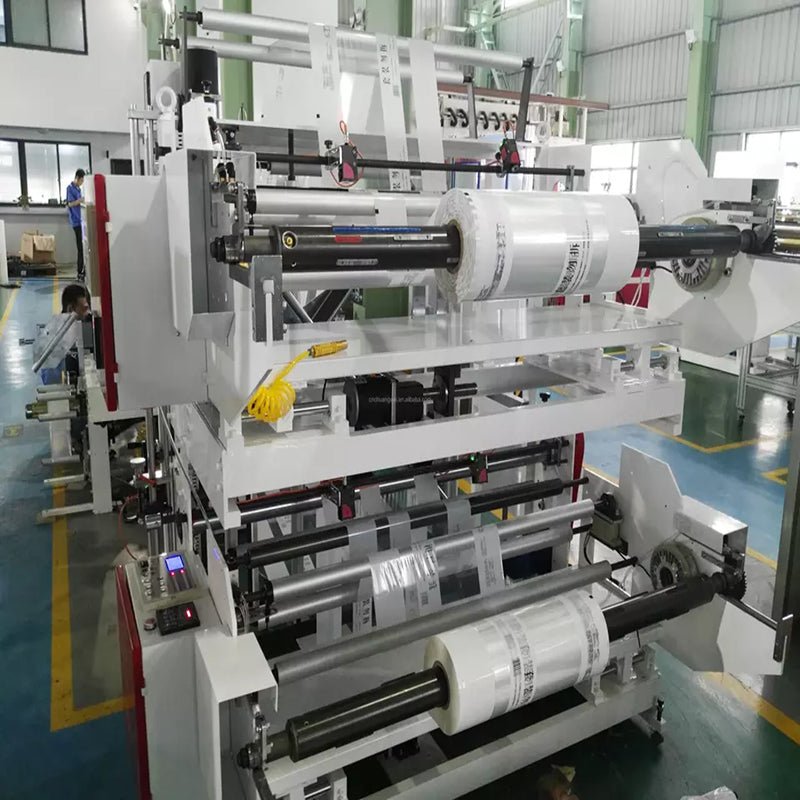

- Eco-Friendly & Kraft Material Compatibility: Smooth unwind tension control prevents wrinkling and delamination when processing laminated kraft paper, AL foil, and BOPP/PE films.

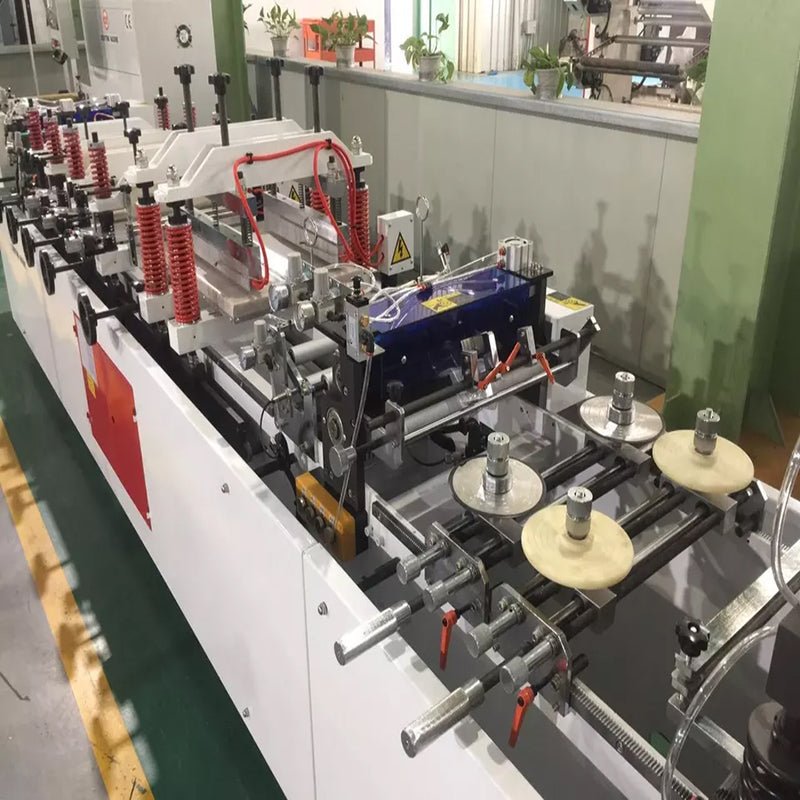

- Zero-Leakage Zipper Sealing: Multi-zone heating bars and cold-press flattening ensure airtight zipper joints without edge burning.
- Smart Automated Operation: Microcomputer-controlled photoelectric tracking with automatic stop on film runout or color mark loss.
Technical Specifications
| Model Series | TDZD-400 | TDZD-500 | TDZD-600 |
|---|---|---|---|
| Pouch Configurations | 3-Side Seal, Stand-Up (Doypack), Zipper Pouch, Paper-Plastic Laminated | ||
| Max Bag Width | 400 mm | 500 mm | 600 mm |
| Max Bag Length | 450 mm (Double stroke up to 900 mm) | ||
| Production Speed | 35 – 160 pcs/min (Stand-up/Zipper: 35–120 pcs/min) | ||
| Compatible Film Types | BOPP, PET, CPP, PE, Aluminum Foil, Kraft Paper Laminated Webs | ||
| Installed Power | 22 kW | 26 kW | 30 kW |
| Approx. Weight & Footprint | 4500 – 6000 kg / Approx. 9500 × 1800 × 1950 mm | ||
Frequently Asked Questions (FAQ)
Can the TDZD series process multi-layer barrier foil and kraft paper bags?
Yes. The TDZD series features heavy-duty unwinding tension control and multi-stage heating bars specifically designed to seal thick aluminum foil laminates, PET/PE structures, and laminated kraft paper pouches without bubbling or delamination.
How fast does the machine run when inserting press-to-close zippers?
While flat three-side seal pouches can reach up to 160 pcs/min, zipper pouch production operates consistently between 35 and 120 pcs/min depending on pouch dimensions and zipper profile thickness.
Where can I obtain the complete operational guide and mechanical drawings?
You can access detailed blueprints, wiring pinouts, and installation guides directly at our TDZD Technical Manual Page.
